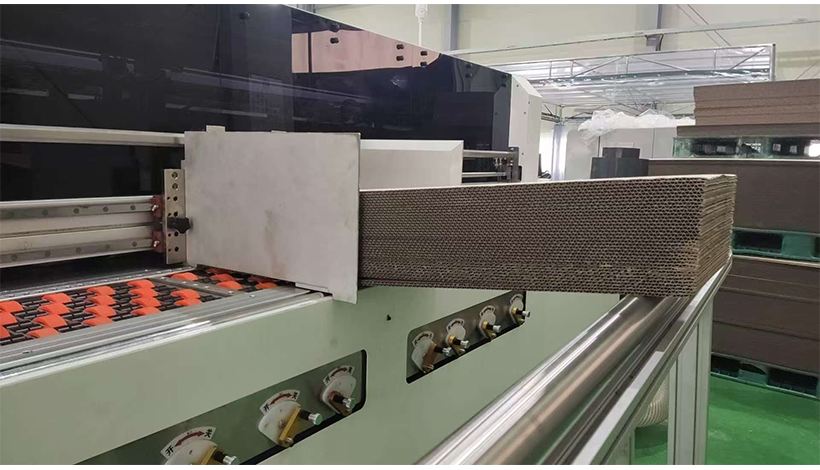

Feeding paper section
- The edge protection board for paper feeding has a specific shape, which does not compromise the strength of the paper board. The right guard plate is driven by a servo motor.
- The main panel is operated by a touch screen and control buttons, which is convenient and reliable.
- Servo paper feeding system, capable of continuously feeding paper sheets of any length.
- Paper supply count setting, display of production quantity.
- Leading edge paper feeding 5.5kw fan, suction-assisted paper feeding, ensuring smooth paper feeding.

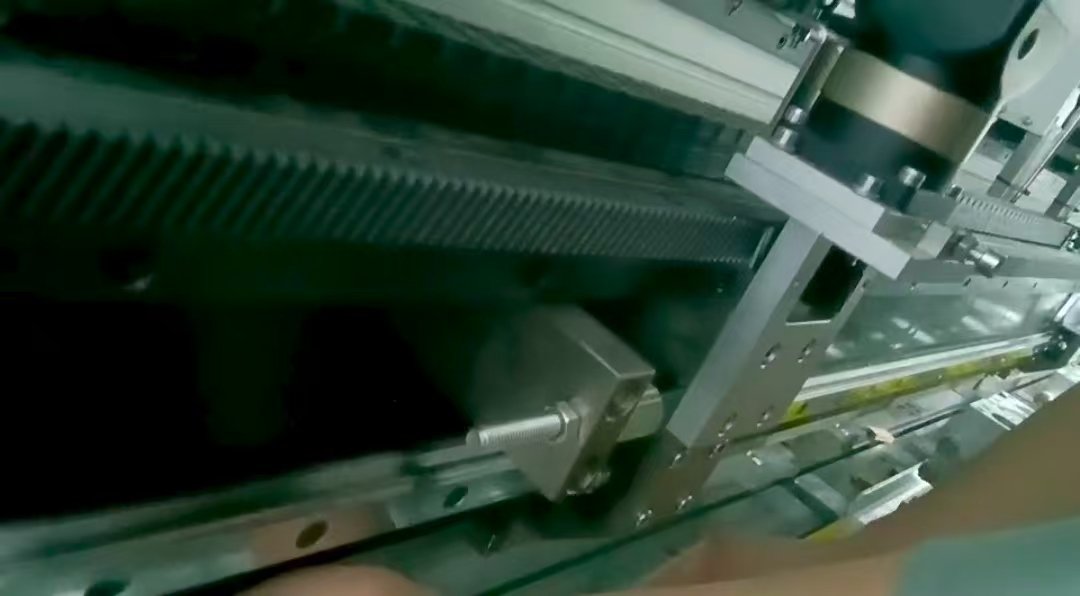

Slotting section
- The slotting tool is made of the original imported material SKD11 from Japan.
- The cross-pressure line is completed by the contact mechanism integrated into the cross-ribbed knife frame, thereby avoiding wire breakage.

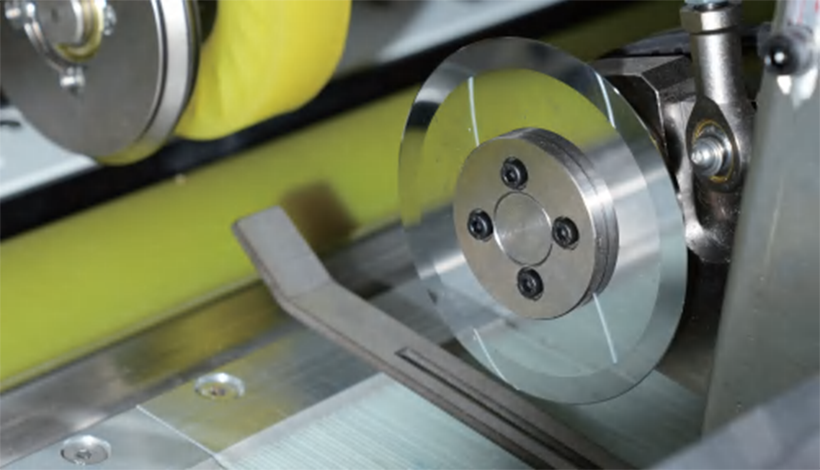

Paper dividing longitudinal pressing section
- Four longitudinal cutting knives and four indentation knives are driven separately by eight sets of servo motors. They operate simultaneously during the model change, enabling rapid model switching.
- Four longitudinal cutting knives are driven to cut by servo motors. The cut edges are smooth and have few burrs.

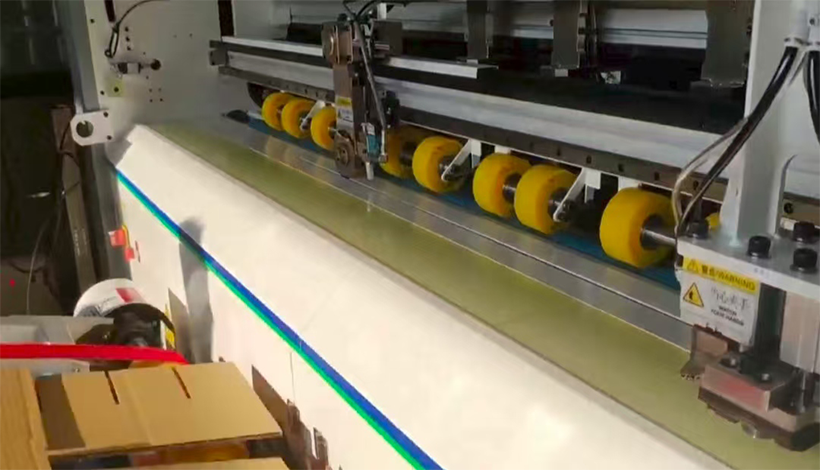

Transverse section
The cross-cutting knife is driven by a motor for cutting. The cut edges are smooth and have few burrs.

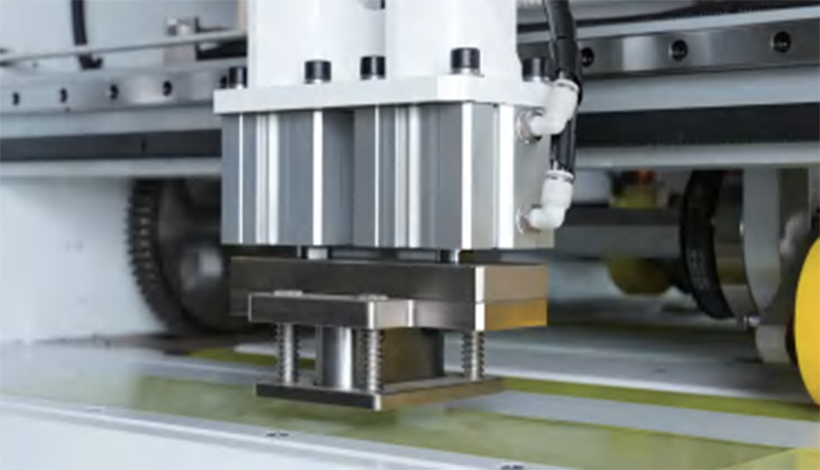

Punching section
- The crossbeam is equipped with a scale, which enables easy adjustment of the position of the handle hole.
- Customizable hole shapes and easy to replace.

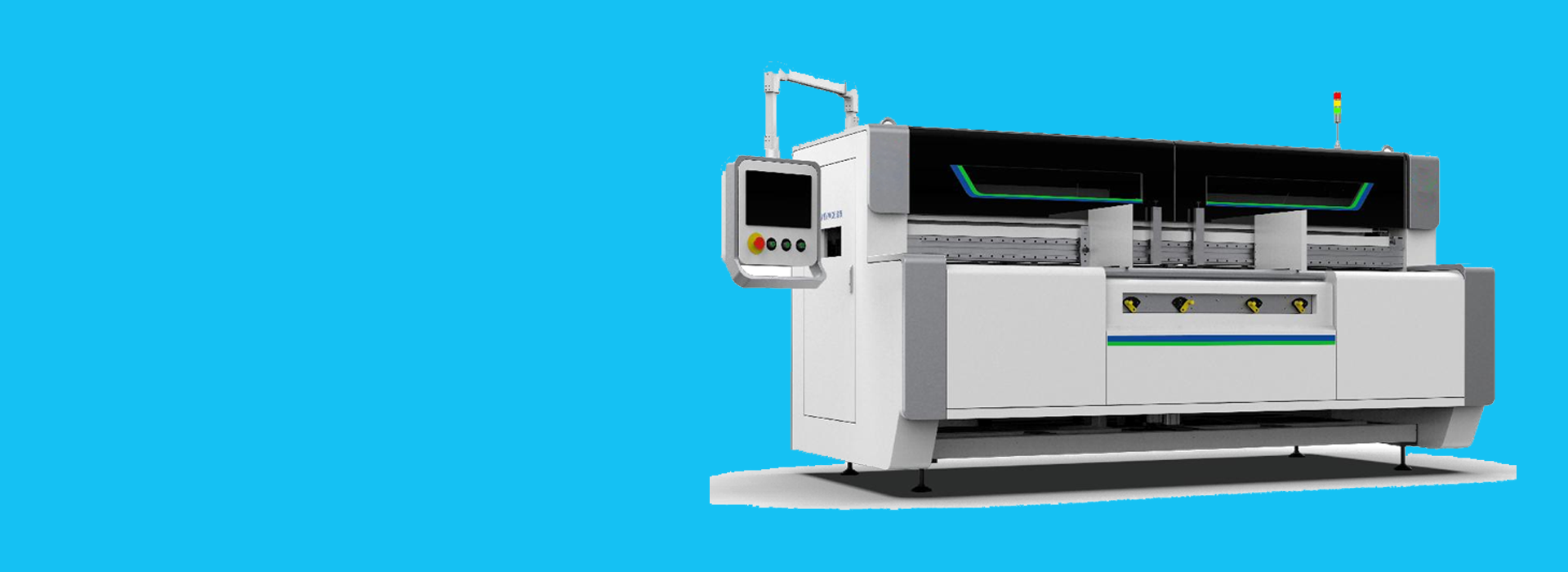

Overall features of the machine
- The continuous paper feeding and single knife single servo system can be used to produce various functions such as standard boxes, double-layer boxes, floor boxes, knife cards, high and low voltage cables, paper separation, and wire pressing. It also allows for quick switching of functions.
- The front edge adopts the servo paper feeding system independently developed by Nai Pu. This system protects the crease pattern of the paperboard and provides a pressure-resistant effect.
- The knife single servo system is capable of performing the knife arrangement function, enabling quick card swapping within approximately 3 seconds. It can also be connected to WMS and perform card swapping through scanning QR codes, etc.
- The width of the clamping line and the size of the tongue can be adjusted automatically.
- The equipment is equipped with a safety door switch to ensure the safety of the operators.
MaoWei Carton Packing Company

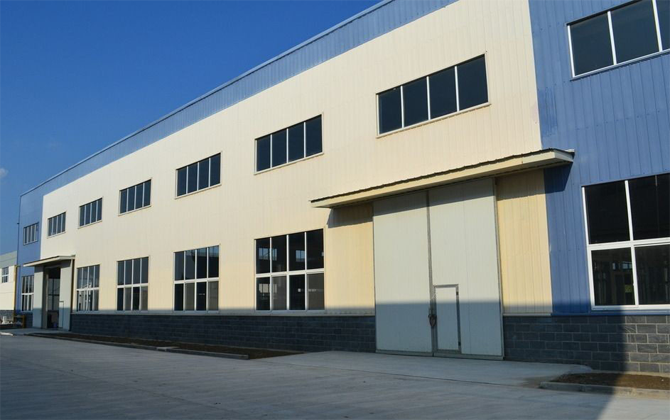

Hebei Maowei Packing Machinery CO.,Ltd is located in the south of the capital Beijing, the north of Jinan, water and land transportation is very convenient, is a considerable scale of the production of Carton Box Machine Manufacturer professional enterprises. Company covers an area of 3000㎡, has 100 employees. We have independent development and research capabilities, professional and rich manufacturing experience, and constantly improve the shortcomings of international and domestic packaging machinery.
- Technical Specifications
| Model | AB2500X(Feed width 2500) |
| Design speed | Approximately 10 pieces per minute (variations may exist due to different box types and processing techniques) |
| Cardboard thickness | 1.5-10mm |
| Maximum single sheet paper feeding | Infinite length |
| Minimum paper feeding | 200mm Width*650mm Length |
| Maximum paper throughput | 2500mm |
| Minimum box size | 150*150*75 |
