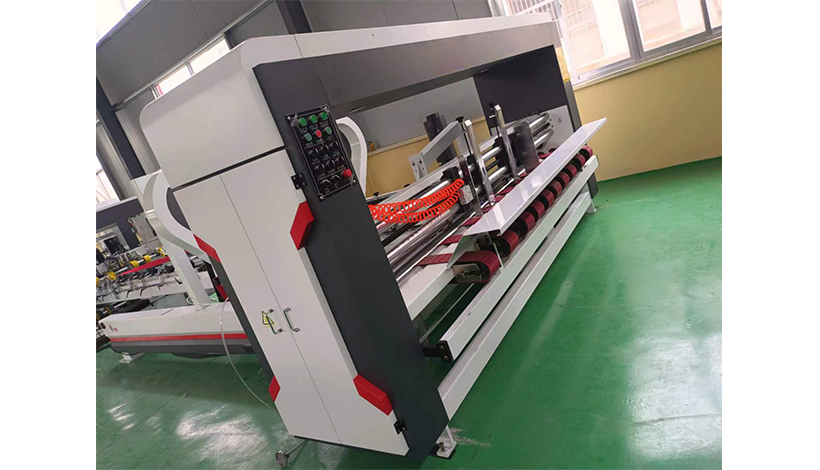

Feeding unit
- The pneumatic side-capture device (operating side) allows you to set the frequency of paper capture on the screen.
- The transmission shaft is equipped with a friction clutch to prevent accidental operation and damage to the machine.
- Active motor startup automatic protection device.
- The machine table is made of all-steel material, which is more stable. The smooth side has U-shaped grooves without sharp edges, preventing any harm to personnel.
- The system is controlled by 8 full-adhesion belts, ensuring more precise, smoother and more durable paper feeding, thereby maximizing the long-term normal operation of the machine.
- Manually adjust the air door to control the vacuum flow and pressure, in order to match the size of the cardboard.
- The air volume can be adjusted to control the vacuum flow and pressure, in order to match the size of the paperboard.
- By the previous positioning, the paper feeding error is reduced and the paper feeding accuracy is improved.
- The positions of the left and right baffles are controlled electrically. Parameters can be directly input on the screen to complete the positioning.
- The rear paper holder is electrically controlled to move forward and backward, and the setting speed is accelerated.
- The gap of the front panel can be adjusted manually, which is convenient and fast.
- Continuous or intermittent paper feeding is available.

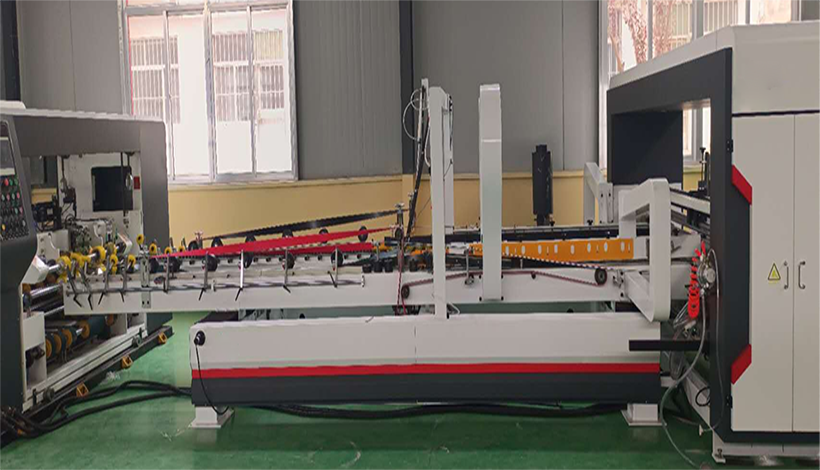

Folding unit
- This section is composed of a 70mm bottom synchronous belt and a 60mm wide guide belt.
- The second and fourth folding lines on both sides are completely adhered together at a 180-degree angle.
- The left and right drive wheels are adjusted according to different positions to ensure smoother operation of the folding box. The lower bearings support and guide the belt to operate correctly.

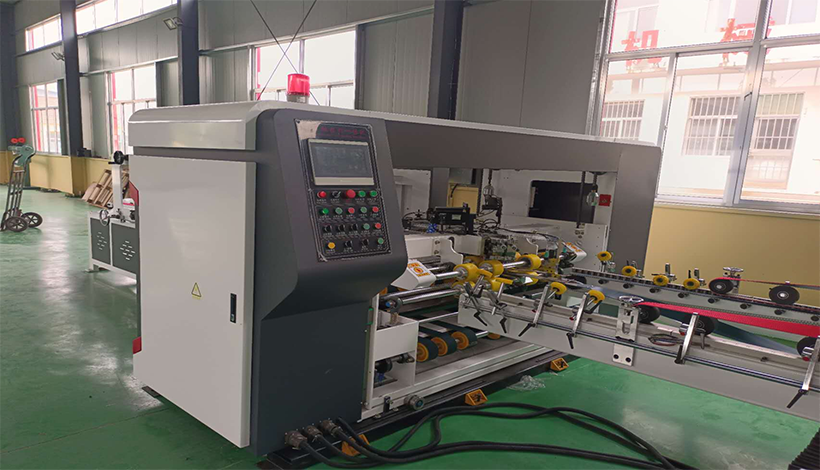

Stitching unit
- The corrected cartons are conveyed into the box-folding section by four flat wheels. These 8 rubber wheels can adjust themselves according to the thickness of the paperboard.
- The nail box section can apply two nails at once. The single nail head is equipped with a high-speed motor. Under the coordinated control of the servo system, the brake, and the electric eye, the nail application speed exceeds 600 nails per minute. This speed is directly related to the spacing between the nails. When the nail box is switched to the blanking mode, the nail head will automatically rise. The speed of the nail box section is coordinated with the main machine, and the entire machine can also move horizontally left and right.

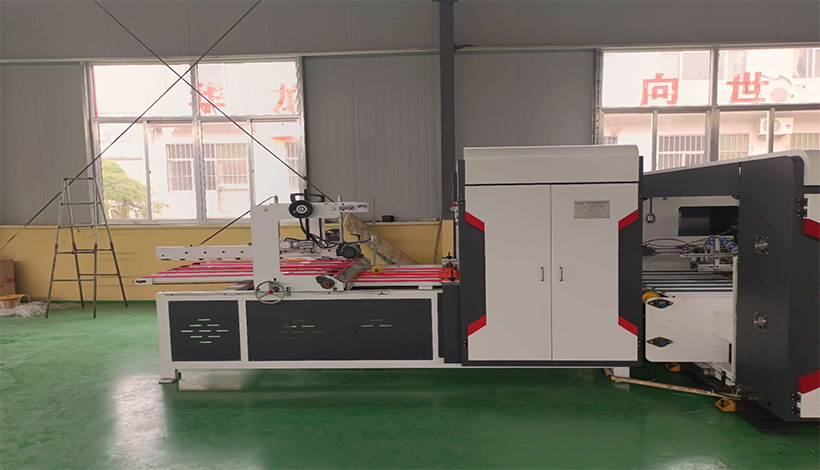

Counting section
- Automatic counting, photoelectric + infrared point control.
- Automatic stacking, with faster speed, greater accuracy and higher efficiency.
Overall performance features of the machine
- The fastest box-nailing speed is 700 nails per minute, and the box-filling speed is 120 meters per minute. The speed is very fast, significantly improving production efficiency.
- The entire machine is controlled by PLC and touch screen, and can also be operated through buttons.
- Automatic paper feeding, automatic box gluing/boxing, automatic folding, automatic correction, automatic counting, automatic stacking.
- The main drive is of synchronous belt wheel type, ensuring smooth operation and precise transmission.
- The main motor adopts dual-frequency control, ensuring stability and saving power.
- The guide plates of each part are adjusted by a tooth rod motor, ensuring precise positioning and being simple and convenient to operate.
- Using the suction belt for paper feeding, the structure is simple, the speed is fast, and the paper feeding is accurate.
- The glue application roller can be adjusted at will, enabling the completion of various requirements for paper box gluing.
- It has a secondary correction function, eliminating large and small openings and reducing the waste rate.
- It has a differential correction adjustment function, completely eliminating the scissors fork design and enabling more precise folding.
- The paper collection and shaping department automatically counts, shapes, stacks into packages, and outputs in complete packages. It is fast and highly accurate.
- The pressure of the counting section is adjusted according to the sample box. A photoelectric counter is used for accurate counting.

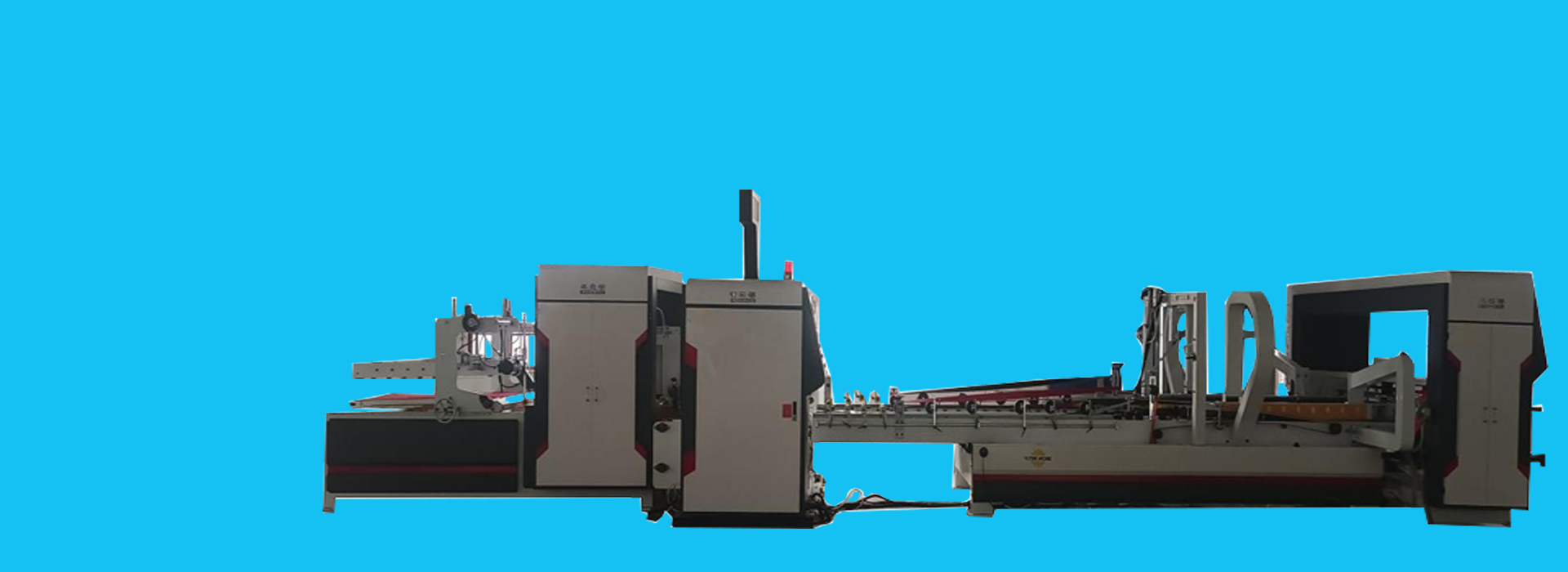

What Is Folder Gluer Stitcher Machine?
A folder gluer stitcher machine is designed for folding, gluing, stitching, and forming corrugated carton boxes in one production line. It is widely used in carton packaging factories to improve production efficiency, reduce labor costs, and ensure stable box quality.
Why Choose Our Folder Gluer Stitcher Machine
- Our machines can reduce labor costs，avoid high labor costs.
- Our machine high speed box folding, solving the problem of low efficiency in gluing boxes.
- Our machine fast order changing, overcome the disadvantage of slow customer order conversion.
- Our machine support large carton size, solving the difficulty of processing large cardboard boxes.
MaoWei Carton Packing Company
Hebei Maowei Packing Machinery CO.,Ltd is located in the south of the capital Beijing, the north of Jinan, water and land transportation is very convenient, is a considerable scale of the production of Carton Box Machine Manufacturer professional enterprises. Company covers an area of 3000㎡, has 100 employees. We have independent development and research capabilities, professional and rich manufacturing experience, and constantly improve the shortcomings of international and domestic packaging machinery.
- Technical Specifications
1)Stitching size
| Maximum C size | 2400mm |
| Minimum A size | 200 mm |
| Maximum A size | 800mm |
| Minimum B size | 150mm |
| Maximum B size | 750mm |
| Minimum cardboard size (DxC) | 320x650mm |
| Maximum cardboard size (DxC) | 1200x2400mm |
2) Gluing size
| A | Min.130- max. 800 |
| B | Min.80 – max. 800 |
| C | Min420 – max.2400 |
| D | Min.170 – max. 1200 |
Customer Review
The customer Adel from Iraq purchased a fully automatic printing machine and a fully automatic box gluing machine from my company. He is a newcomer in the paper box packaging industry. With the support of our technical team, he has started his career in this industry.
AdelCompany ownerA customer from Ethiopia purchased corrugated cardboard production lines and a complete set of carton machinery and equipment from our company. From the production of cardboard to the making of cartons, complete the entire production line process. It was the customers who improved the production efficiency.
Mr. GashawCompany ownerA customer from Thailand has been purchasing a fully automatic printing and gluing box machine production line from our company since 2019, and the cooperation has continued until now. After purchasing the fully automatic machines, the production efficiency of the customers has been improved and the need for manual labor has been reduced.
TeerawatPurchasing Manager
Of course! Two function in one machine.
6~14mm
Industrial packaging, food packaging, cosmetics packaging, express delivery and logistics.
Prices vary depending on the model and optional features; please contact me for detailed pricing information.
Related Products

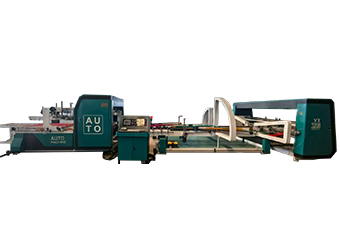

Fully automatic paper box forming, producing over 100 types of paper boxes.
Folder Gluer vs Stitcher Machine: Which Carton Box Machine Is Better？
In the corrugated packaging industry, choosing between a Folder Gluer Machine and a Box Stitching Machine is one of the most important decisions for carton manufacturers. Both machines are widely used in corrugated box production, but they serve different purposes depending on box type, strength requirements, production speed, and customer demand.
If you are looking for the best solution for your carton factory, understanding the difference between these two machines can help improve efficiency, reduce labor costs, and increase production quality.
What Is a Folder Gluer Machine?
A Folder Gluer Machine is used to fold and glue corrugated cardboard automatically or semi-automatically. It applies glue to carton flaps and forms finished boxes quickly and efficiently.
Main Advantages of Folder Gluer Machines
- High production speed
- Clean and attractive box appearance
- Lower labor costs
- Suitable for mass production
- Compatible with automatic packaging lines
- Ideal for export cartons and e-commerce packaging
Common Applications
- Corrugated shipping boxes
- Food packaging cartons
- E-commerce boxes
- Printed carton boxes
- Light and medium-duty packaging
What Is a Stitcher Machine?
A Box Stitching Machine uses metal wire staples to connect corrugated carton flaps. Compared with glue bonding, stitching provides stronger joint strength for heavy-duty cartons.
Main Advantages of Stitcher Machines
- Stronger carton sealing strength
- Better for heavy corrugated boxes
- Suitable for export and industrial packaging
- Performs well in humid environments
- Lower glue consumption
Common Applications
- Heavy-duty cartons
- Fruit and vegetable boxes
- Industrial packaging cartons
- Double-wall and triple-wall corrugated boxes
- Large-size carton boxes
Conclusion
Both Folder Gluer Machines and Box Stitching Machines play important roles in modern corrugated box production. The right machine depends on your box type, production capacity, labor cost, and packaging requirements.
For carton factories aiming to improve efficiency, reduce manual work, and increase packaging quality, investing in the right carton converting equipment can significantly improve competitiveness in the packaging industry.
After receiving the deposit, 30~60days, different machines have different times.
30%TT in advance, 70% balance payment before shipping.
My company is located in the Industrial zone of Dongguang County, Cangzhou City, Hebei Province.
