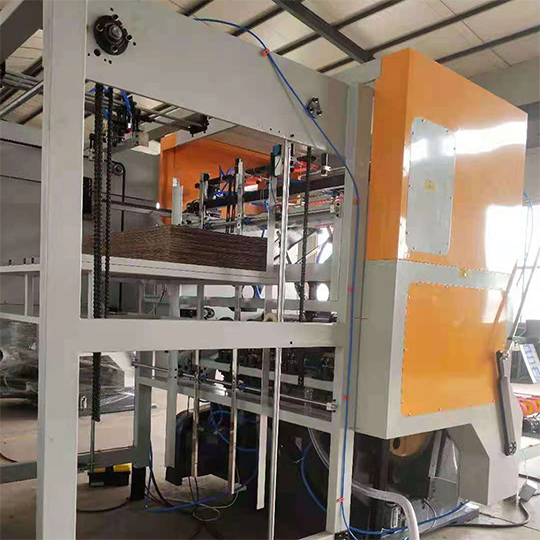

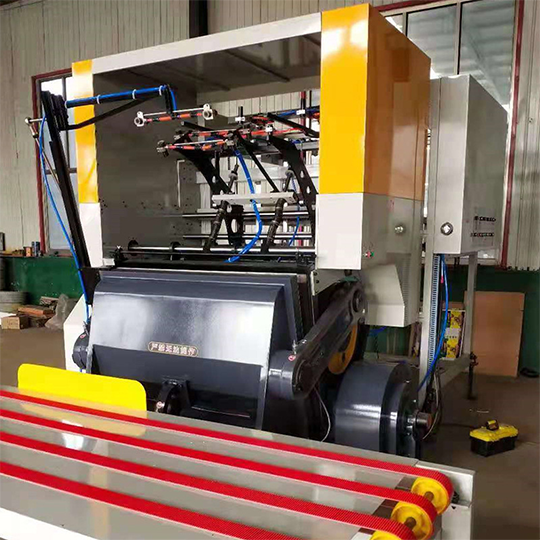

Machine structure
- The paper storage area is mainly used for stacking cardboard and adjusting the position of the cardboard.
- The paper feeding section places the paper board from the paper feeding section into the tray machine and adjusts the position.
- The paper discharging unit discharges the properly sized paper onto the conveyor belt.
- The paper discharge belt transports the paper board out of the guardrail.
- The vacuum pump provides the suction power for the suction nozzle of the mechanical hand.
- The safety guardrail encloses the machine’s paper feeding area to prevent people from entering the dangerous zone.
Working video
Machine configuration
- The main steel plates and 100X50 square tubes of this machine’s wall panel and frame are connected together. The structure is reasonable and the product is both sturdy and durable.
- Most of the transmission shafts adopt straight smooth shafts.
- The gears are quenched with 45# steel, making them durable and wear-resistant.
- The suction tips are specially designed for flat pressing and flat die-cutting machines. They have a strong suction force and can smoothly suction the paper.
- The vacuum pump uses the 140B type oil-free vacuum pump, and the air pipe is 16mm in diameter. This ensures the normal operation of the suction nozzle.
- The suction nozzle operation time control valve adopts the latest adjustable time cam control valve developed by our factory. It has a reasonable structure, is durable and resistant to dust, has a large air supply capacity, and far exceeds the performance of the rotary air distribution valve (used on the paper feeding transfer head). It also compensates for the shortcomings of the rotary air distribution valve.
MaoWei Carton Packing Company
Hebei Maowei Packing Machinery CO.,Ltd is located in the south of the capital Beijing, the north of Jinan, water and land transportation is very convenient, is a considerable scale of the production of Carton Box Machine Manufacturer professional enterprises. Company covers an area of 3000㎡, has 100 employees. We have independent development and research capabilities, professional and rich manufacturing experience, and constantly improve the shortcomings of international and domestic packaging machinery.
- Technical Specifications
| Model | Max.size | Min.size | Die-cutting accuracy（士） | Speed（士2） | Motor power |
| 930 | 880X670 | 470X340 | 0.75 | 25/min | 4.0kw |
| 1100 | 1050X800 | 550X410 | 0.75 | 23/min | 5.5kw |
| 1200 | 1150X830 | 600X420 | 0.75 | 23/min | 5.5kw |
| 1300 | 1250X920 | 650X470 | 0.75 | 18/min | 5.5kw |
| 1400 | 1350X1000 | 700X510 | 0.75 | 18/min | 7.5kw |
| 1500 | 1450X1050 | 750X530 | 0.75 | 18/min | 7.5kw |
Customer Review
The customer Adel from Iraq purchased a fully automatic printing machine and a fully automatic box gluing machine from my company and was satisfied.
AdelCompany ownerA customer from Ethiopia purchased corrugated cardboard production lines and a complete set of carton machinery and equipment from our company.
Mr. GashawCompany ownerA customer from Thailand has been purchasing a fully automatic printing and gluing box machine production line from our company since 2019, and the cooperation has continued until now.
TeerawatPurchasing Manager
We are manufacturer.
Sure,we have permanentfreight forwarder who can gain the best prce from mostship companyand offer professional service.
Our machines have 12 month warranty.And the engineers avaiable for overseasservice.
Yes, we accept customized services for customers and we have agents in other countries.
After receiving the deposit, 30~60days, different machines have different times.
30%TT in advance, 70% balance payment before shipping.
My company is located in the Industrial zone of Dongguang County, Cangzhou City, Hebei Province.
