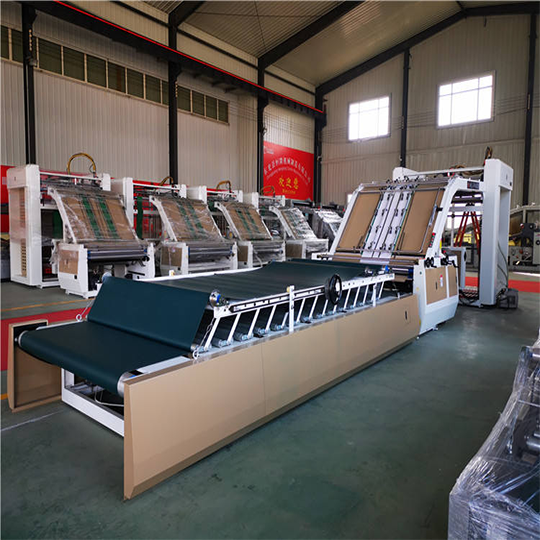

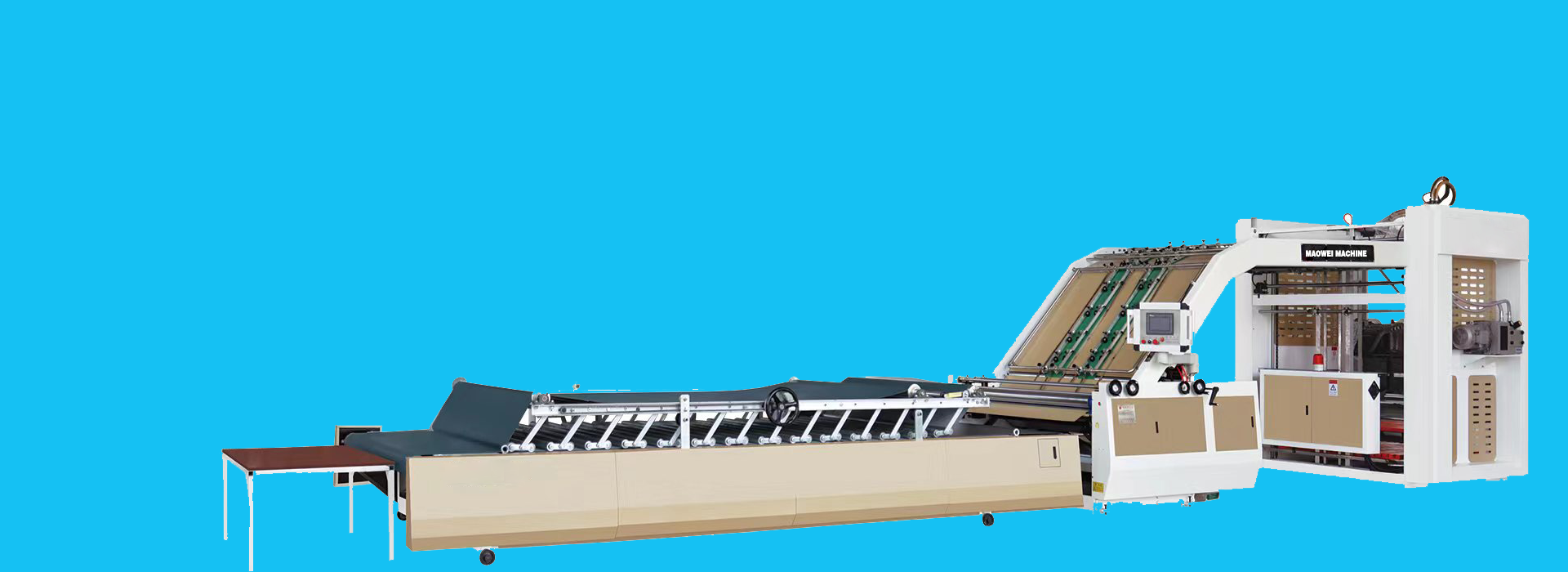

Introduction
- Suitable for laminating of cardboard and corrugated cardboard in 150-600 g/m2.
- The machine operation is stable, surface paper with corrugated paper joint very accurate. The corrugated paper never pull ahead, surface paper’s location is easy adjust.
- Machine uses touch-screen/PLC/servo motor control system, double frequency control type , the circuit system is stable, and can automatically display the failure alarm

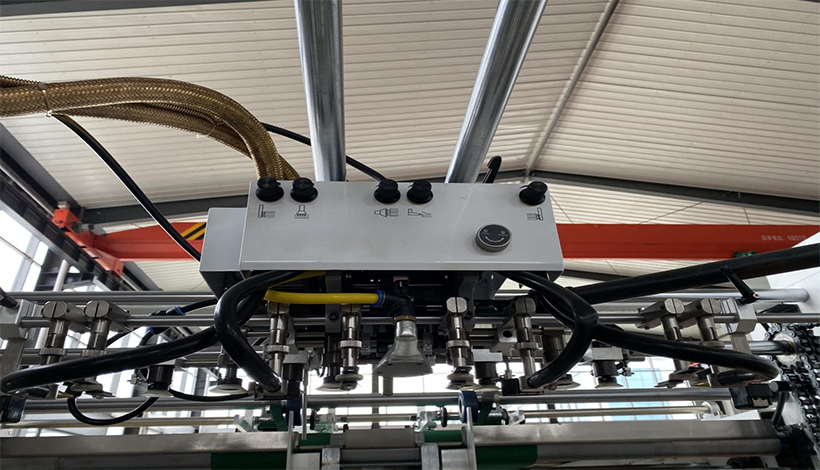

Feeder System
- High precision high speed feeder , make the feeding smooth.
- Strengthen type feeder device , the suction mouth angle can be adjustable , according to different kinds of surface paper.

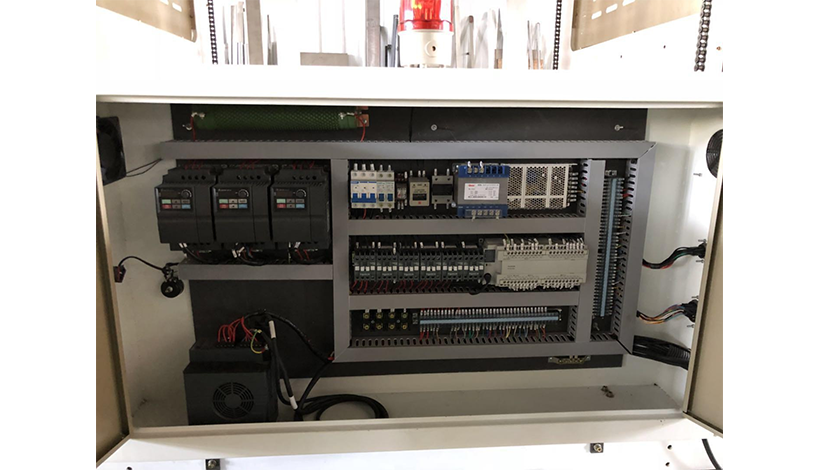

Electric system
- Main electric appliances all adopt the imported famous brand.
- PLC tracking technique , automatic fault detection.

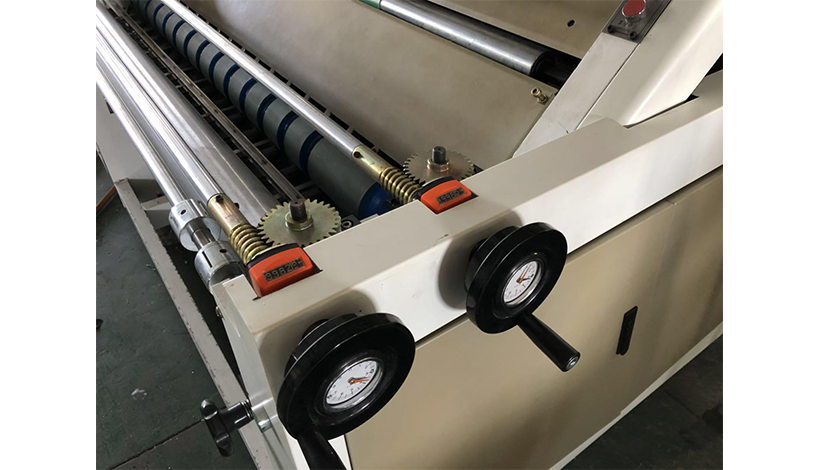

Pressure adjustment system
- Adjust the pressure in single side , to ensure the pressure is same on both sides.
- With pressure gauge display , can easily adjust when change the paper size.

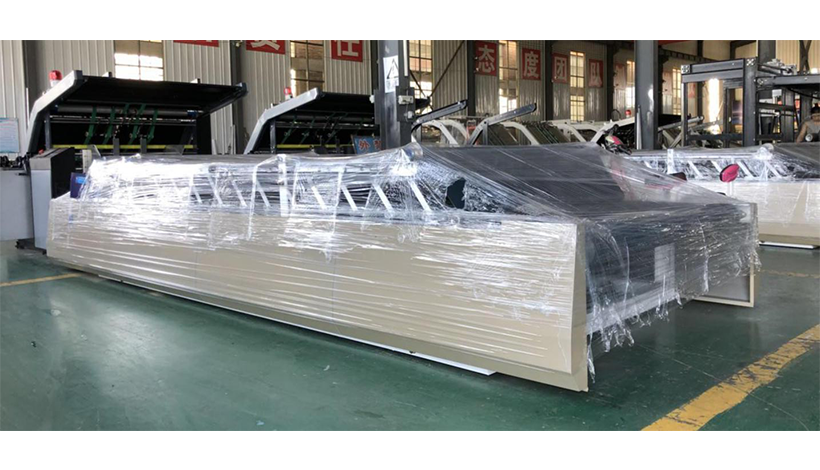

Pressure conveyor
- Floating type pressure design , don’t need to adjust the pressure of flatbed.
- Heightening design , good for the smooth work of thick corrugated cardboard.
Function
- The vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.
- Using suction automatic feeding of bottom sheet, according to the main machine operating speed, continuous automatic tracking.
- Automatic gluing, and the glue can be used circulatory, avoid glue waste.
- Measure roller line-speed design scientifically, avoid glue fly out when the speed is high.
- Pressure rollers adopt unilateral adjustment, convenient and fast.
- Cleaning type : bottom roller is extruded by rubber roller to clean the bottom laminating pressure roller, ensure the cleaner on the reverse of the bottom paper . Make glue etc. foreign matter after washing direct subside in tank. At the same time , adopting the gear and chain to control the lifting of tank, can take out the tank easily and convenient to wash.
MaoWei Carton Packing Company
Hebei Maowei Packing Machinery CO.,Ltd is located in the south of the capital Beijing, the north of Jinan, water and land transportation is very convenient, is a considerable scale of the production of Carton Box Machine Manufacturer professional enterprises. Company covers an area of 3000㎡, has 100 employees. We have independent development and research capabilities, professional and rich manufacturing experience, and constantly improve the shortcomings of international and domestic packaging machinery.
- Technological parameter
| Model | HL-1300A-Ⅲ | HL-1450A-Ⅲ | HL-1550A-Ⅲ | HL-1650A-Ⅲ |
| Max laminating size | 1300mm×1250mm | 1400mm×1250mm | 1500mm×1250mm | 1600mm×1250mm |
| Min laminating size | 400mm×400mm | 400mm×400mm | 400mm×400mm | 400mm×400mm |
| Economic speed | 0-100sheets/min | 0-100sheets/min | 0-100sheets/min | 0-100sheets/min |
| Laminating precision | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Power | 10kw | 12kw | 12kw | 12kw |
| Size | 13.5m×2m×2.4m | 13.5m×2.05m×2.4m | 13.5m×2.15m×2.4m | 13.5m×2.25m×2.4m |
| Weight | About 4.8t | About 5t | About 5.2t | About 5.4t |
| Bottom paper thickness | A/B/C/E/F flute,2/ 3/4/5/7/ layer , less than 12mm thickness | |||
| Surface paper gram weight | 150-600 g/ | |||
