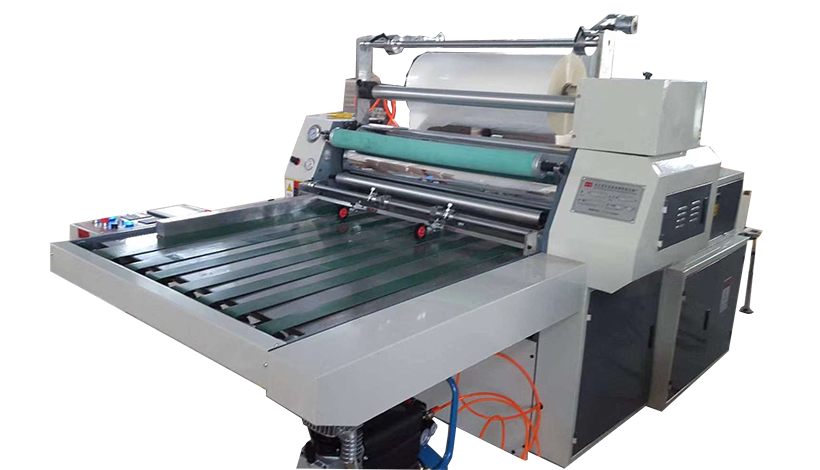

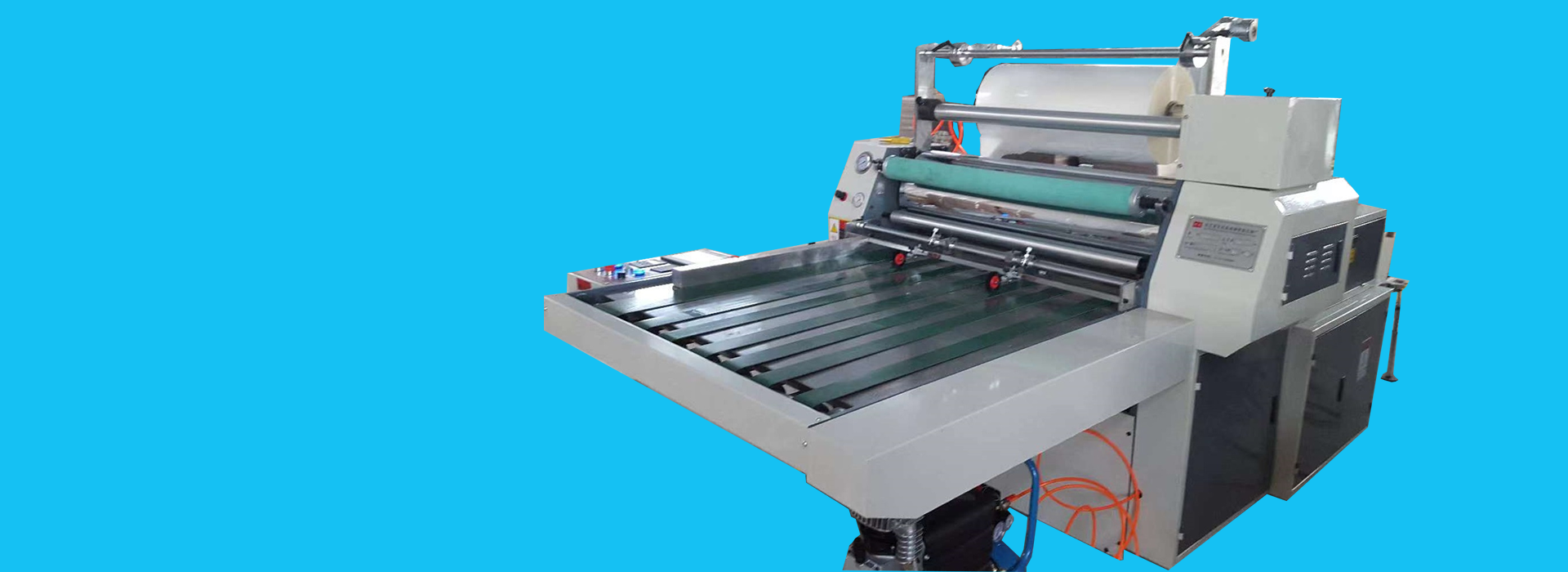

Function Introduction
- The mainframe is controlled by PLC, with variable frequency speed regulation, touch screen display, high degree of automation, stable operation, reliable paper feeding, convenient and flexible automatic pressure adjustment, and heating by 320# heat transfer oil for constant temperature heating, ensuring uniform and reliable temperature.
- This machine is equipped with a built-in heat-conducting oil chrome-coated mirror heating roller with a diameter of 320mm. The composite rubber shaft is a high-temperature-resistant rubber shaft, and the composite rubber shaft is driven by hydraulic power, ensuring stable and reliable pressure.
Function Introduction
- This machine is a laminated tearing integrated machine. It adopts an automatic tearing device. The cutting rollers are driven by cylinders and perform pneumatic bouncing tearing. On the paper feeding table, there is a front stop gauge, which can assist in manually placing the paper and aligning the edges, thereby reducing the labor intensity of the workers. The products produced by this machine have remarkable advantages such as good adhesion, high transparency, and strong three-dimensionality.
- The heating optical axis is processed by mirror chrome plating technology. With a diameter of 320mm, the coating quality is excellent and the service life is long.
- The composite rubber shaft is made of high-temperature-resistant rubber and is driven by hydraulic power. It is stable and reliable when in use.
- This machine does not require glue, eliminating the glue application process, and is both economical and environmentally friendly.
- No need for a drying rack, saves energy and space.
- The control system adopts a human-machine interface touch display screen, with a high degree of automation.
- The film feeding part adopts an air-inflated shaft for film feeding, which enables quick replacement of the film and ensures accurate positioning. The tension of the film can be adjusted freely.
- The double-channel punching device makes it convenient for users to select and use it for different types of paper and films.
- The machine is equipped with a front guard device, which can precisely control the paper edge distance, thereby reducing the labor intensity of the workers.
- The machine is a laminating and breaking integrated machine. After the lamination process is completed, it directly breaks the film, with high efficiency.
- The temperature control system employs an intelligent temperature control device. Once the specified temperature is set, the machine will automatically heat up. Once the set temperature is reached, the temperature control system will automatically cut off the power supply, thereby saving electricity.
MaoWei Carton Packing Company
Hebei Maowei Packing Machinery CO.,Ltd is located in the south of the capital Beijing, the north of Jinan, water and land transportation is very convenient, is a considerable scale of the production of Carton Box Machine Manufacturer professional enterprises. Company covers an area of 3000㎡, has 100 employees. We have independent development and research capabilities, professional and rich manufacturing experience, and constantly improve the shortcomings of international and domestic packaging machinery.
- Technical Specifications
| Model | BYF1100 |
| Maximum film coverage width | 1100mm |
| Applicable paper thickness | 128-500g/m |
| Film coating speed | 0-40m/min |
| Pressing pressure | 5-15MPa |
| Total power | 21KW |
| Dimensions of the shape | 2600×1900×1600 |
| Overall weight of the machine | 1700kg |
Customer Review
The customer Adel from Iraq purchased a fully automatic printing machine and a fully automatic box gluing machine from my company and was satisfied.
AdelCompany ownerA customer from Ethiopia purchased corrugated cardboard production lines and a complete set of carton machinery and equipment from our company.
Mr. GashawCompany ownerA customer from Thailand has been purchasing a fully automatic printing and gluing box machine production line from our company since 2019, and the cooperation has continued until now.
TeerawatPurchasing Manager
We are manufacturer.
Sure,we have permanentfreight forwarder who can gain the best prce from mostship companyand offer professional service.
Our machines have 12 month warranty.And the engineers avaiable for overseasservice.
Yes, we accept customized services for customers and we have agents in other countries.
After receiving the deposit, 30~60days, different machines have different times.
30%TT in advance, 70% balance payment before shipping.
My company is located in the Industrial zone of Dongguang County, Cangzhou City, Hebei Province.
