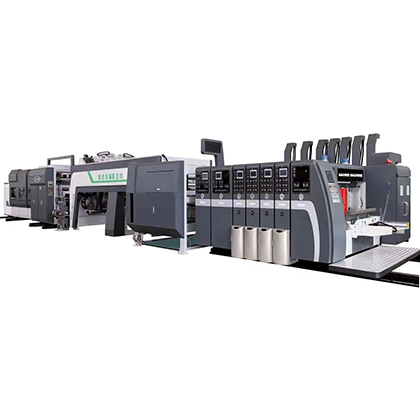

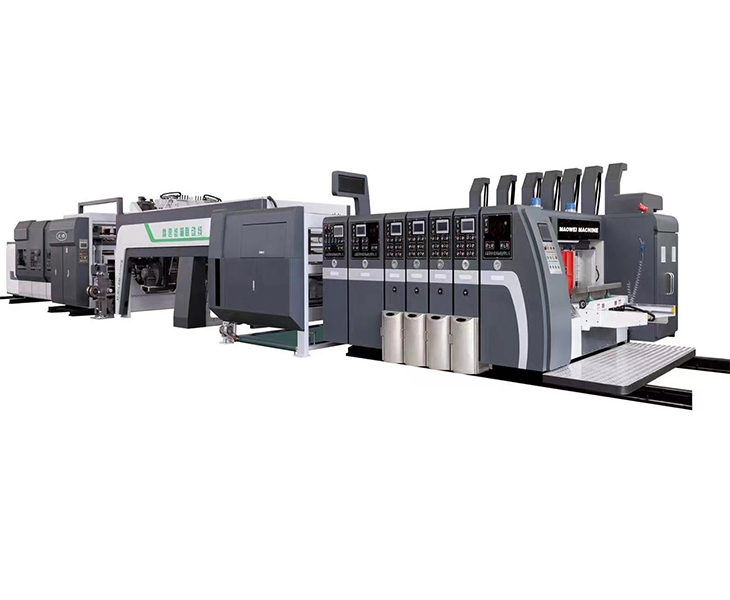

Inline flexo printing machine
- Speed 300pcs/min
- Printing-slotting-die cutting-gluing-bundling function.
- The carton is fully formed.

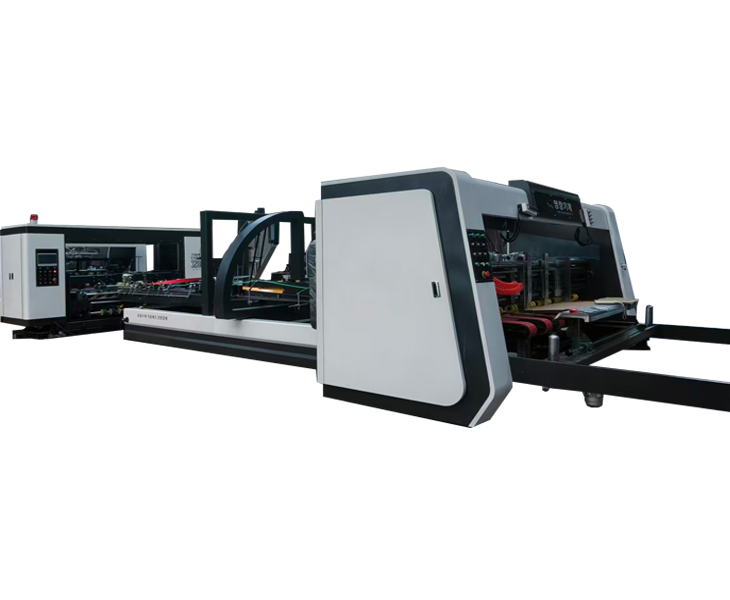

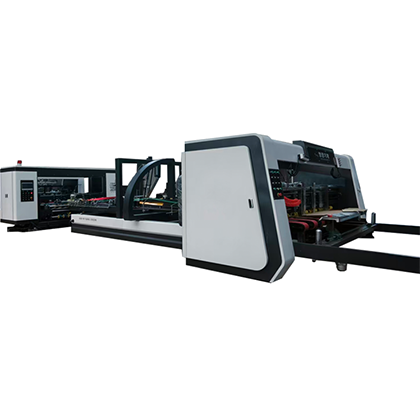

Automatic Folder Gluer Stitcher
- Stitching speed 700 nails/min, gluing speed 120 m/min.
- Stitching and gluing function in one machine.
- Automatic switching between gluing/nailing modes
Automatic Box Making Machine
What Is Carton Box Making Machine？
A Carton Box Making Machine is an automated system used to produce corrugated and cardboard boxes for packaging industries. It can complete printing, slotting, folding, gluing, and forming processes with high speed and precision. Modern carton box making machines help manufacturers reduce labor costs, improve production efficiency, and ensure consistent box quality. They are widely used in e-commerce, food, electronics, and logistics packaging. Choosing the right carton box making machine can increase productivity, lower material waste, and support customized packaging solutions for different business needs.
Applications of Automatic Box Forming Machines
Advantages of Automatic Box Forming Machines
- Full automatic feeding——Reduce labor，reduce labor costs.
- Servo positioning——Reduce scrap rate.
- Quick size change——Small batch order friendly.
- High-speed production——Increase production capacity.
How Does an Automatic Box Forming Machine Work?
1. Cardboard Feeding
Flat corrugated sheets or pre-cut box blanks are automatically loaded into the machine through a feeding system. Vacuum suction separate each sheet precisely.
2. Positioning & Alignment
Sensors detect the cardboard position to ensure accurate folding and forming. This reduces errors and maintains stable production quality.
3. Printing & Slotting & Die cutting
The machine prints and cuts the cardboard to form the required cardboard shape.
4. Folding & Gluing Process
The machine folds the cardboard along pre-scored lines using mechanical folding arms, belts, or guides. After folding, the machine applies glue the side flaps automatically. This creates a strong and secure carton structure.
5. Box Forming & Output
The formed boxes are compressed and shaped before being discharged onto a conveyor. Finished cartons are then ready for product packing or palletizing.
MaoWei Carton Packing Company
Hebei Maowei Packing Machinery CO.,Ltd is located in the south of the capital Beijing, the north of Jinan, water and land transportation is very convenient, is a considerable scale of the production of Carton Box Machine Manufacturer professional enterprises, global export. Company covers an area of 3000㎡, has 100 employees. We have independent development and research capabilities, professional and rich manufacturing experience, and constantly improve the shortcomings of international and domestic packaging machinery for carton packaging factories.
Technical Specifications
- Automatic Box Forming Machine（一）
- Industrial Carton Forming Machine（二）

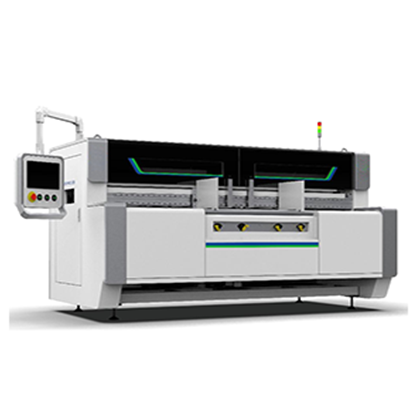

- Automatic Cardboard Box Maker（三）

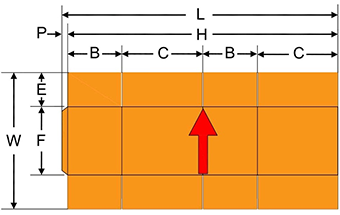

| ITEM | CONTENT | MIN. | MAX. | |
| L | Cardboard Feeding Width | 1040 | 2900 | |
| W | Cardboard Width | 350 | 1200 | |
| W | Skip Feeding | 350 | 1400 | |
| F | Box Height | 110 | 600 | |
| E | Slotting Depth | 0 | 300 | |
| P | Glue Flap | 25 | 45 | |
| W x H | Max. Printing Area | 1200x2800mm | ||
| B x C x B x C | Min. Slotting Space (Revised Knife) | 260x80x260x80mm | ||
| Printing Plate Thickness | 7.2mm | |||
| Printing Accuracy | ±0.5mm | |||
| Cardboard Thickness | 1.5- 11mm | |||
| Speed (sheets/min.) | Max. Speed | 260sheets/min | ||
| Economic Working Speed | 150-260sheets/min | |||
| Total Power | 178 Kw | |||
| Working Power | About 120 Kw | |||
| Frame Thickness | 60mm | |||
1)Stitching size
| Maximum C | 2800mm |
| Minimum A | 200 mm |
| Maximum A | 850mm |
| Minimum B | 150mm |
| Maximum B | 750 mm |
| Minimum (D x C) | 290 x 650 mm |
| Maximum (D x C) | 1200 x 2800 mm |
2）Glue size
| A | Minimum.130. – Maximum. 800 |
| B | Minimum.80. – Maximum. 800 |
| C | Minimum 420 – maximum.2800 |
| D | Minimum 170 – Maximum 1200 |
| Equipment Size: | 2100 mm(L) * 4050 mm(W) * 2100 mm(H) | Weight: | Approx. 4200 kg |
| Power: | 380 V, 50/60 HZ, 15 KW | Production Rate: | 500–600 pcs/hour |
| Air Pressure: | 0.6–0.8 MPa | Cardboard Density: | Up to 1200 g/m² |
| Switchover Time: | 3 Seconds | Corrugated Board Type: | Sheet (single wall, double wall) |

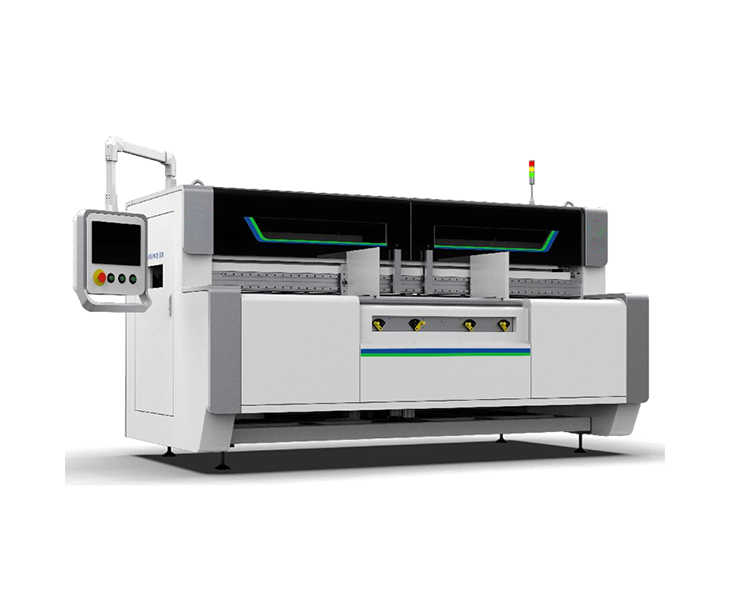

| Cardboard Thickness: | 1–12 mm | Box Types: | Over 100 Type Boxes |
| Max. Board Size: | 3000mm (W) * Unlimited Length | Min. Board Size: | 200 mm (W) * 410 mm (L) |
| Max. Box Size: | Unlimited (L) * 1000 mm (W) * 1500 mm (H) | Min. Box Size: | 150 mm(L) * 150(W) * 75 mm(H) |
| Slotting Knife: | 2 Pcs * 500 mm (L) | Vertical Cutting Knife: | 4 Pcs |
| Creasing Wheel: | 4 Pcs | Horizontal Cutting Knife: | 1 Pcs |
| Max Box Height: | 2900 mm | Min Box Height: | 75 mm (1 mm for optional) |
Customer Cases
The customer Adel from Iraq purchased a fully automatic printing machine and a fully automatic box gluing machine from my company. He is a newcomer in the paper box packaging industry. With the support of our technical team, he has started his career in this industry.

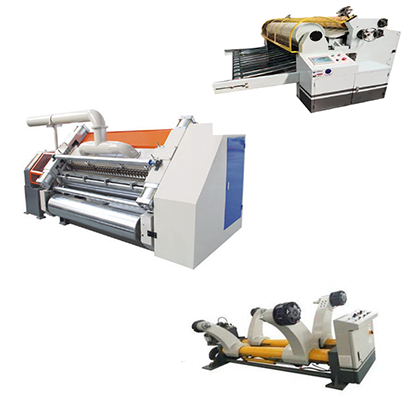

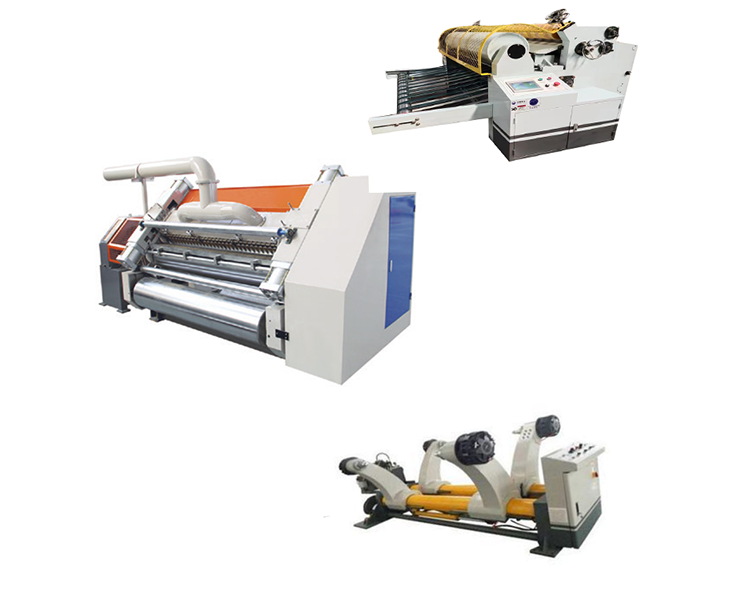

AdelCompany ownerA customer from Ethiopia purchased corrugated cardboard production lines and a complete set of carton machinery and equipment from our company. From the production of cardboard to the making of cartons, complete the entire production line process. It was the customers who improved the production efficiency.
Mr. GashawCompany ownerA customer from Thailand has been purchasing a fully automatic printing and gluing box machine production line from our company since 2019, and the cooperation has continued until now. After purchasing the fully automatic machines, the production efficiency of the customers has been improved and the need for manual labor has been reduced.
TeerawatPurchasing Manager
Choose the right machine based on your needs; prices range from tens of thousands to hundreds of thousands of US dollars.

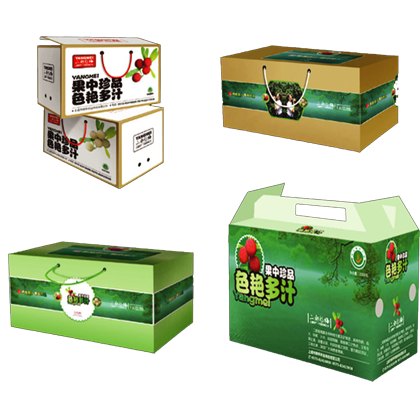

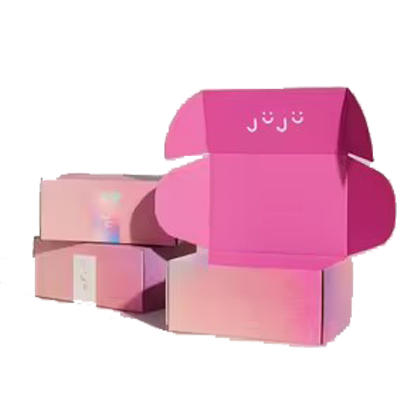

Food industry, express delivery industry, cosmetics industry, pharmaceutical industry, etc.
Corrugated cardboard boxes: various standard and irregular shaped cardboard boxes.
Related Products

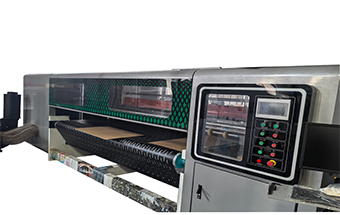

Computer mind mapping: a fast printer that doesn’t require a printing plate.
How to Choose an Automatic Box Forming Machine
Choosing the right automatic box forming machine can improve packaging efficiency, reduce labor costs, and increase carton production speed. It is widely used in corrugated box manufacturing, e-commerce packaging, food packaging, and logistics industries.
When selecting an automatic carton box forming machine, consider these key factors:
- Production Speed – Choose a machine that matches your daily carton output needs.
- Box Size Range – Ensure the machine supports different carton sizes and corrugated board thicknesses.
- Automation Level – Fully automatic machines offer higher efficiency, while semi-automatic machines are more affordable.
- Sealing Method – Hot melt glue systems provide stronger sealing, while tape sealing reduces operating costs.
- Machine Stability – High-quality components and PLC control systems improve durability and reduce downtime.
- After-Sales Service – Reliable technical support and spare parts are important for long-term operation.
A high-performance corrugated box making machine helps businesses improve packaging quality, save labor, and increase productivity. Whether you run a small factory or a large packaging plant, choosing the right automatic box forming equipment is essential for long-term growth.
Please tell me your requirements, and I will summarize a solution for you.
30%TT in advance, 70% balance payment before shipping.
My company is located in the Industrial zone of Dongguang County, Cangzhou City, Hebei Province.
Our machines have 12 month warranty.And the engineers avaiable for overseasservice.
