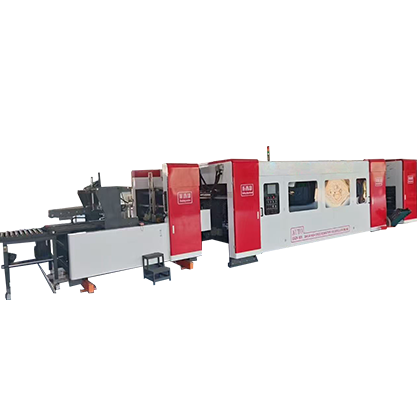

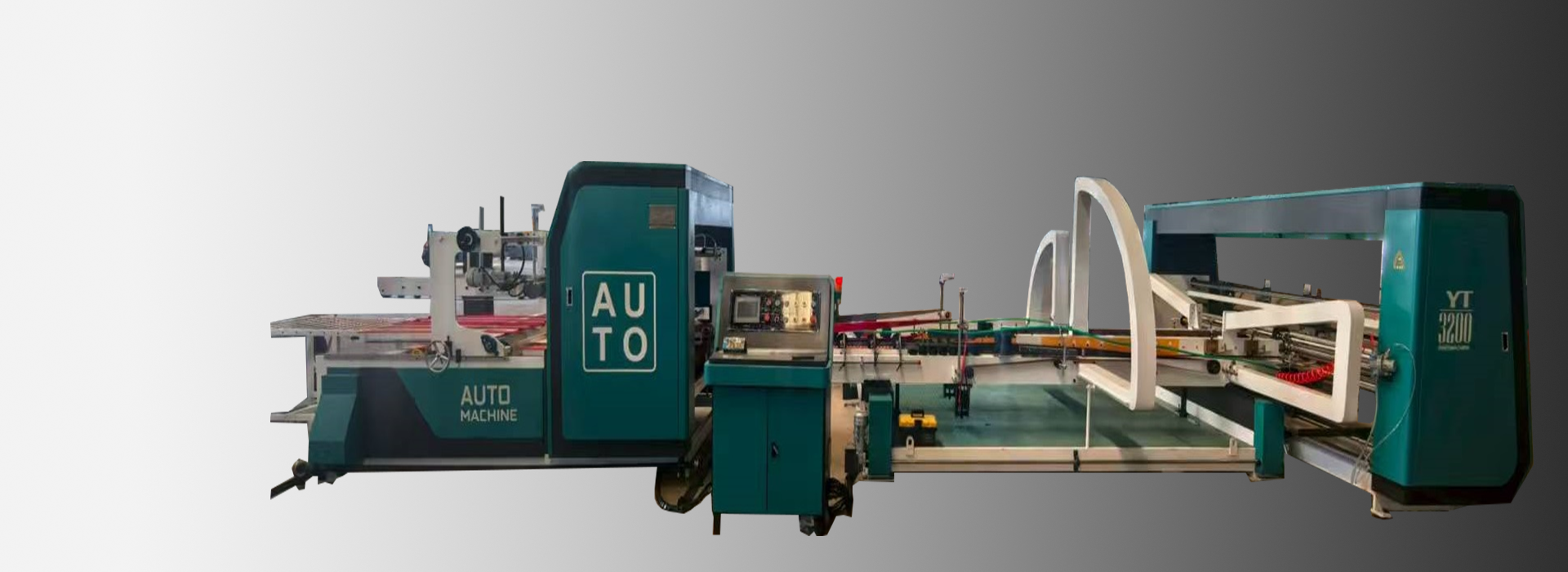

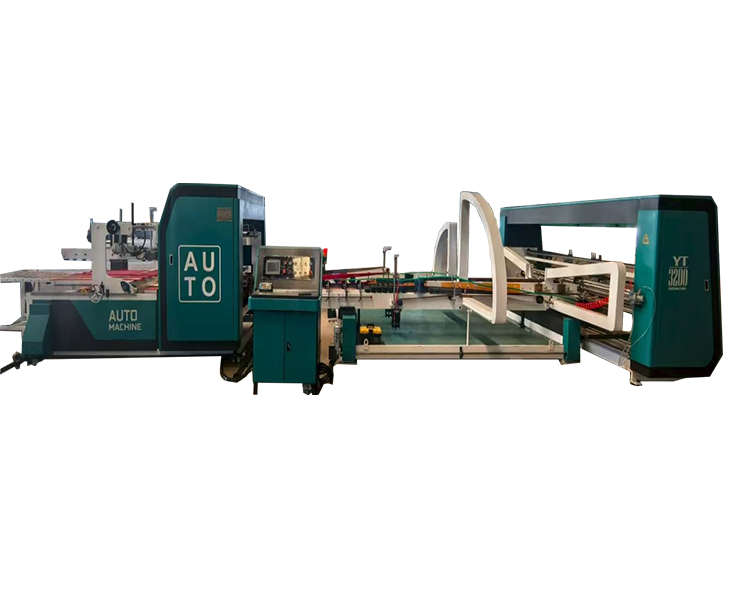

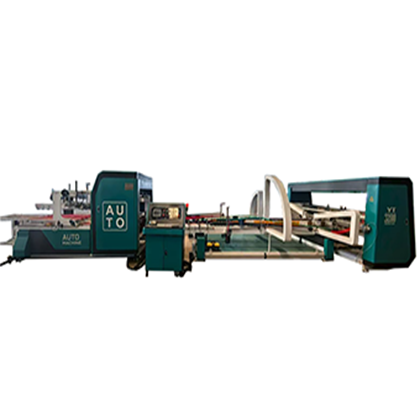

Category 1-Automatic Folder Gluer Machine（一）
- Speed 130m/min.
- Automatic paper feeding, automatic folding, secondary correction, automatic counting, automatic stacking.
- It has an electric deviation correction function, eliminating the scissors fork and achieving more precise folding.

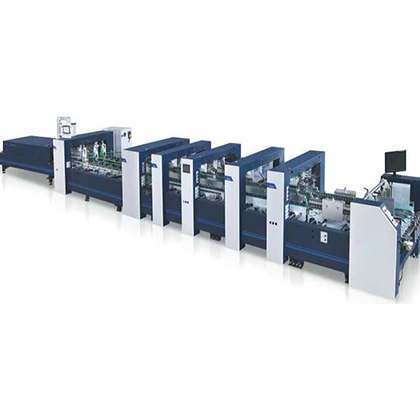

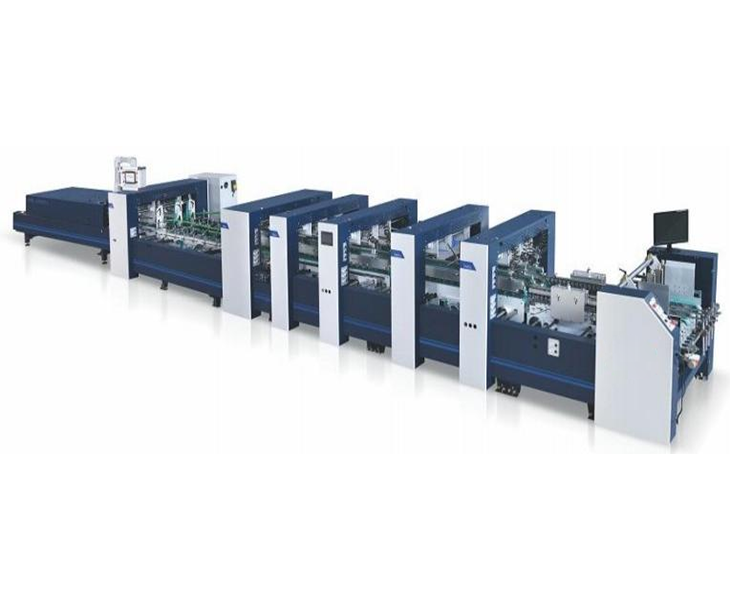

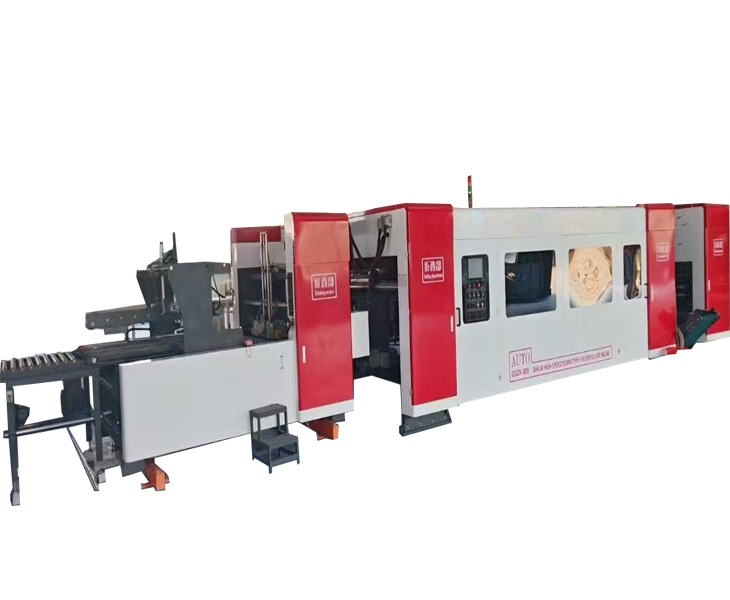

Category 2-Automatic 4 Corner 6 Corner Folder Gluer（二）
- Speed ≤300 m/min
- The paper-discharging suction device has individual control over each suction belt.
- The extended board strip effectively demonstrates the pre-ripping function of the first and third folding lines.

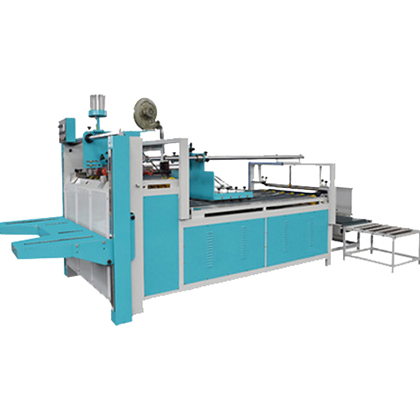

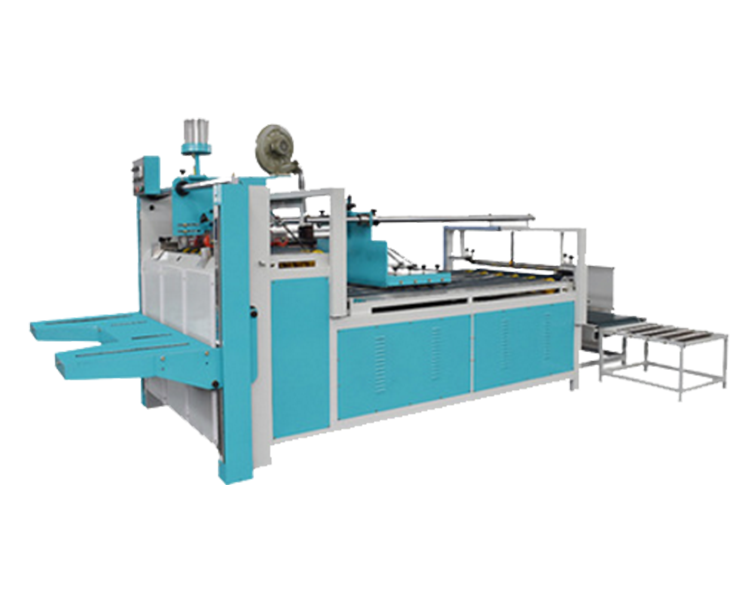

Category 3-Semi-Automatic Folder Gluer Machine（三）
- Speed 40m/min
- The paper loading platform can be raised and lowered automatically or by foot, which is convenient, quick, and improves production efficiency.
- The automatic correction unit uses a 180-degree direct shot to effectively correct for scissor differences caused by inaccurate paper pressing.
- Automatic counting, neat stacking.

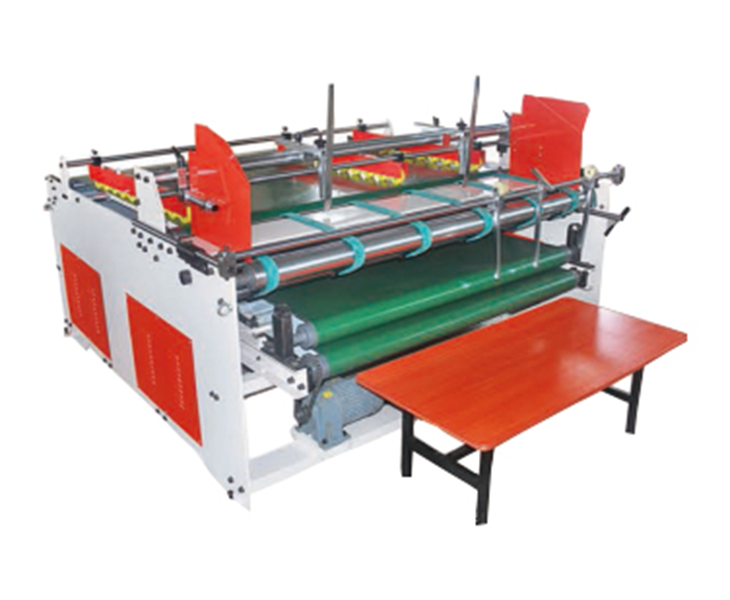

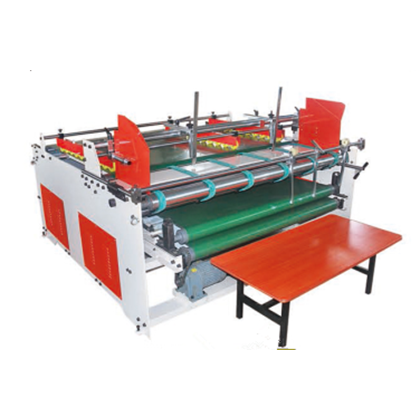

Category 4-Semi-Automatic Press Folder Gluer Machine（四）
- Speed 60m/min
- Wide application: ordinary carton, special color box.
- Save gluer: The amount of glue is equal to a third of the amount of an artificial person.
- This machine adopts manual folding to improve work efficiency, and it is also suitable for the products with improper indentation, special shape and paper window that are not easy to be processed by the automatic box sticking machine.

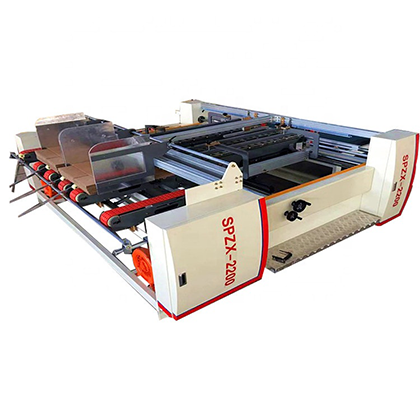

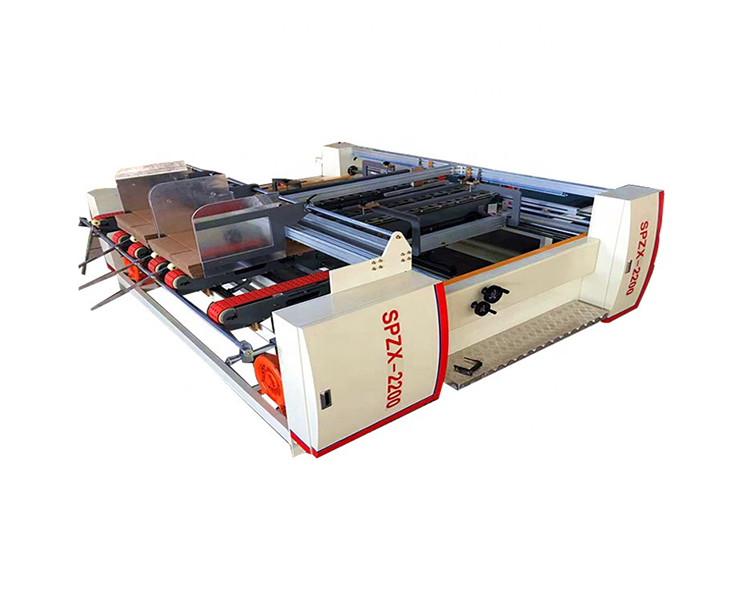

Category 5-Double Pieces Folder Gluer Machine（五）
- Speed 0~2000pcs/min
- Paper processing range: A-E flute.
- This machine adopts dual frequency conversion speed regulation, PLC centralized control, servo positioning, and precise operation control.
Category 6-Flexo Folder Gluer（六）
- Speed 300m/min
- Connects to a printing machine to perform printing, slotting, die-cutting, waste removal, gluing, folding, straightening, counting, stacking, and output.
- Integrated machine control, computer-stored orders, remote control operation, digital input.
What Is Folder Gluer Machine
A Folder Gluer Machine is a specialized packaging machine designed to fold paperboard or corrugated cardboard blanks and apply glue so the material can be transformed into finished boxes. It is widely used in industries such as food packaging, electronics, pharmaceuticals, cosmetics, apparel, logistics, and consumer goods.
Although the machine sounds simple in theory, modern folder gluer systems integrate automation, precision alignment, high-speed feeding, glue control, pressure adjustment, inspection systems, and delivery stacking into a single production workflow.
Folder Gluer Machine Applications
This article details the applications of 6 different carton gluing machines.

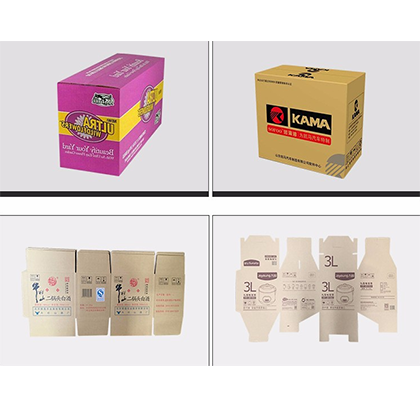

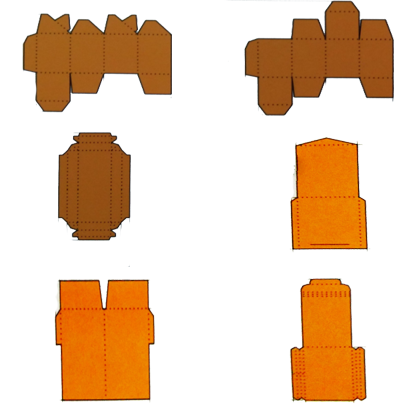

Automatic 4 Corner 6 Corner Folder GluerSuitable for corrugated carton box and cardboard box（such as medicine box, accessory box etc) 4 & 6 corner box, bottom lock type box.

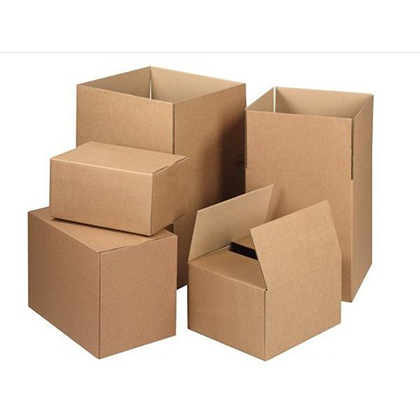

Suitable for corrugated carton box, economy cost.
Semi-Automatic Press Folder Gluer MachineSuitable for standard and irregular shaped cardboard boxes.

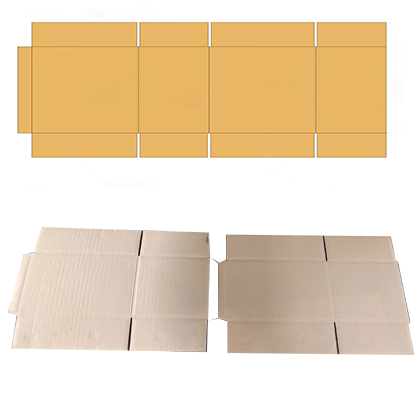

Double Pieces Folder Gluer MachineSuitable for two-piece molding of AA sheets and AB sheets, as well as single-piece molding boxes.
Which Folder Gluer Is Better?
Choose an Automatic Folder Gluer If:
- You have large daily production volumes
- You want to reduce labor costs
- You produce standardized carton sizes
- Your factory needs fully automated packaging lines
Choose a Semi-Automatic Folder Gluer If:
- Your budget is limited
- You produce custom or small-batch cartons
- You need flexible machine adjustment
- Your factory has limited space
MaoWei Carton Packing Company
Hebei Maowei Packing Machinery CO.,Ltd is located in the south of the capital Beijing, the north of Jinan, water and land transportation is very convenient, is a considerable scale of the production of Carton Box Machine Manufacturer professional enterprises, global export. Company covers an area of 3000㎡, has 100 employees. We have independent development and research capabilities, professional and rich manufacturing experience, and constantly improve the shortcomings of international and domestic packaging machinery for carton packaging factories.
Automatic VS Semi Automatic Folder Gluer
| Feature | Automatic Folder Gluer | Semi-Automatic Folder Gluer |
| Production Speed | High-speed continuous production | Medium-speed production |
| Labor Requirement | Minimal manual labor | Requires operators for feeding and collection |
| Automation Level | Fully automated feeding, folding, gluing, and stacking | Manual feeding with automatic gluing and folding |
| Suitable Box Types | Large-volume standard cartons and complex box styles | Small to medium batch cartons |
| Production Efficiency | Very high | Moderate |
| Setup Time | Longer setup for different box sizes | Faster adjustment and flexible operation |
| Initial Investment | Higher machine cost | Lower investment cost |
| Operating Cost | Lower labor cost over time | Higher labor dependency |
| Space Requirement | Larger factory space needed | Compact footprint |
| Skill Requirement | Requires trained technicians | Easier for beginners |
| Best For | Large packaging factories and mass production | Small factories and custom packaging businesses |
| Typical Output | 15,000–40,000 boxes/hour | 2,000–10,000 boxes/hour |
| Glue Application | Precise automatic glue control | Semi-automatic glue system |
| Integration Capability | Can connect with inline printing and packing systems | Usually standalone operation |
| Maintenance | More complex maintenance | Easier maintenance |
| Energy Consumption | Higher | Lower |
| ROI Period | Faster ROI for high-volume production | Better for limited budgets |
Technical Specifications
- Automatic Folder Gluer Machine（一）
- Automatic 4 Corner 6 Corner Folder Gluer（二）
- Semi-Automatic Folder Gluer Machine（三）
- Semi-Automatic Press Folder Gluer Machine（四）
- Double Pieces Folder Gluer Machine（五）
- Flexo Folder Gluer（六）

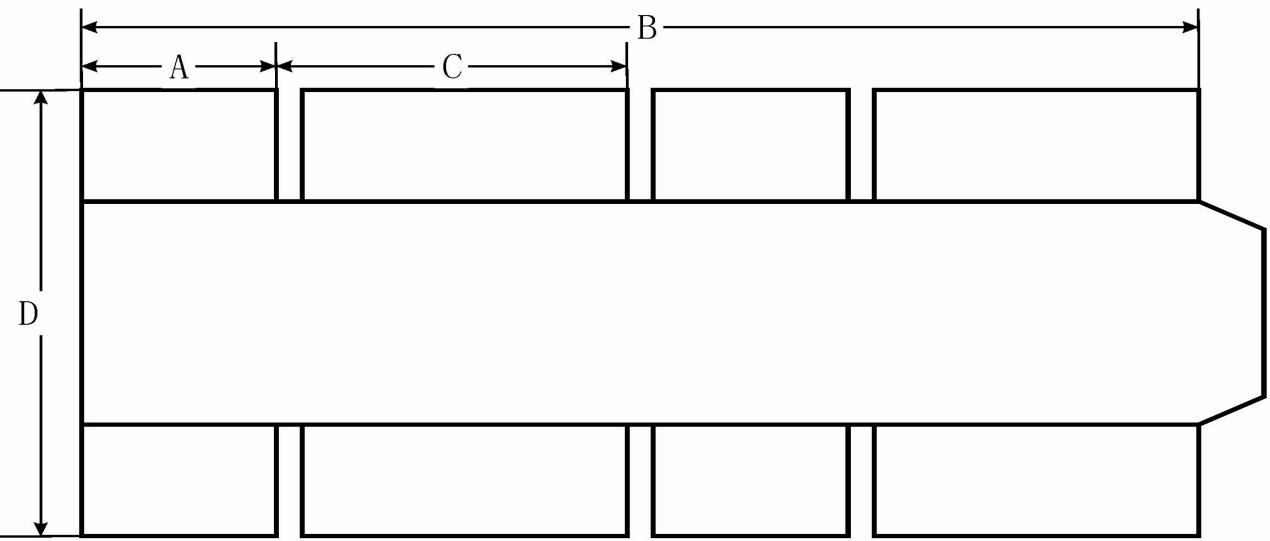

| A | min.130- max. 1000 |
| B | Min70 – max. 600 |
| C | Min.420 – max.2400 |
| D | min.170 – max.1200 |
| Model | KPM-PJ-V24 |
| Voltage | AC220V(±20%)50～60HZ |
| Power | 480W |
| Gun operating frequency | ≤500 cycle/s |
| Air source input pressure | 6 bar(Treated with filtered water and oil) |
| Glue viscosity | 700～2000 mPas |
| Glue pressure | 5～20 bar |
| Working speed | ≤300 m/min |
| Working accuracy | ±1mm(speed 100m/min below) |
| System bracket dimensions | 700W×500D×1200H |
| Gun quantity | Optional, up to 4 |
| Number of eyes | Optional, up to 4 |
| Maximum size (length + width) | 2800mm |
| Minimum size (length + width) | 600mm |
| Maximum size (width + height) | 1515mm |
| Minimum size (width + height) | 300mm |
| Carton height | 900mm |
| Mechanical length | 5000mm |
| Mechanical weight | 1150kg |
| Mechanical speed | 4m/min |
| Model | 2000mm |
| Power source | 3-380V AC 50/60 hz |
| Power | 4-7.5kw |
| Weight | About 1.3T |
| Maximum glue size | 2000*1100mm |
| Minimum glue size | 200*260mm |
| Model | 2200mm |
| Maximum feed paper size | Single piece 1100*1200mm |
| Minimum feed paper size | Single piece 450*220mm |
| Machine speed | 0~3000pcs/h |
| Power | 6.8kw |
| Overall size | 3400*8000(press down 3400mm)*1400mm |
| Model | 2400 | 2600 | 2800 |
| A(mm) | 80-880 | 80–880 | 80-880 |
| B(mm) | 470-2400 | 600–2600 | 600-2800 |
| 尺寸C(mm) | 130-850 | 165–850 | 165-850 |
| D(mm) | 170-1050 | 240–1200 | 240-1200 |
| Installation area(mm) | 10-3m | 10.5-3.5m | 10.5-3.7m |
| Power (KW) | 8kw | 8kw | 8kw |
| Weight (T) | 5T | 5.5T | 5.5T |
Customer Cases
The customer Adel from Iraq purchased a fully automatic printing machine and a fully automatic box gluing machine from my company. He is a newcomer in the paper box packaging industry. With the support of our technical team, he has started his career in this industry.
AdelCompany ownerA customer from Ethiopia purchased corrugated cardboard production lines and a complete set of carton machinery and equipment from our company. From the production of cardboard to the making of cartons, complete the entire production line process. It was the customers who improved the production efficiency.
Mr. GashawCompany ownerA customer from Thailand has been purchasing a fully automatic printing and gluing box machine production line from our company since 2019, and the cooperation has continued until now. After purchasing the fully automatic machines, the production efficiency of the customers has been improved and the need for manual labor has been reduced.
TeerawatPurchasing Manager
A carton gluing machine is a mechanical device used in carton factories to glue together folding cartons.
The type of glue used in a carton gluing machine depends on the specific application and requirements.
1. White glue, which has good environmental performance, low price, and is suitable for manual gluing or gluing ordinary corrugated cardboard boxes using semi-automatic and fully automatic gluing machines.
2. Hot melt adhesive: strong adhesion and good penetration, it can directly penetrate into the fibers of the cardboard surface, making the bond stronger.
The folding carton machine can handle corrugated cartons. Especially the fully automatic corrugated carton folding machine can automatically complete a series of processes from deviation correction and base trimming to aligning and assembling the colored cartons, significantly improving work efficiency and product quality.
Related Products
Fully automatic paper box forming, producing over 100 types of paper boxes.
How Folder Gluer Machines Work
The working process of a folder gluer machine usually includes several stages:
1. Paper Feeding
Corrugated sheets are automatically fed into the machine. The feeder ensures stable and continuous paper input at high speed.
2. Folding Section
The machine folds the paper along pre-creased lines. Different folding systems allow the production of straight-line boxes, lock-bottom boxes, and other custom packaging styles.
3. Glue Application
Cold glue or hot melt glue is applied precisely to specific areas of the box blank. Accurate glue control helps improve bonding quality and reduce waste.
4. Pressing and Forming
After folding and gluing, the cartons move through a pressing section where pressure is applied to ensure strong adhesion and perfect box shaping.
5. Counting and Stacking
Finished boxes are automatically counted and stacked for easy packaging and transportation.
Conclusion
Folder gluer machines help packaging manufacturers improve productivity, reduce production costs, and achieve consistent box quality. As demand for corrugated packaging continues to grow, folder gluer machines have become an important solution for modern carton production.
