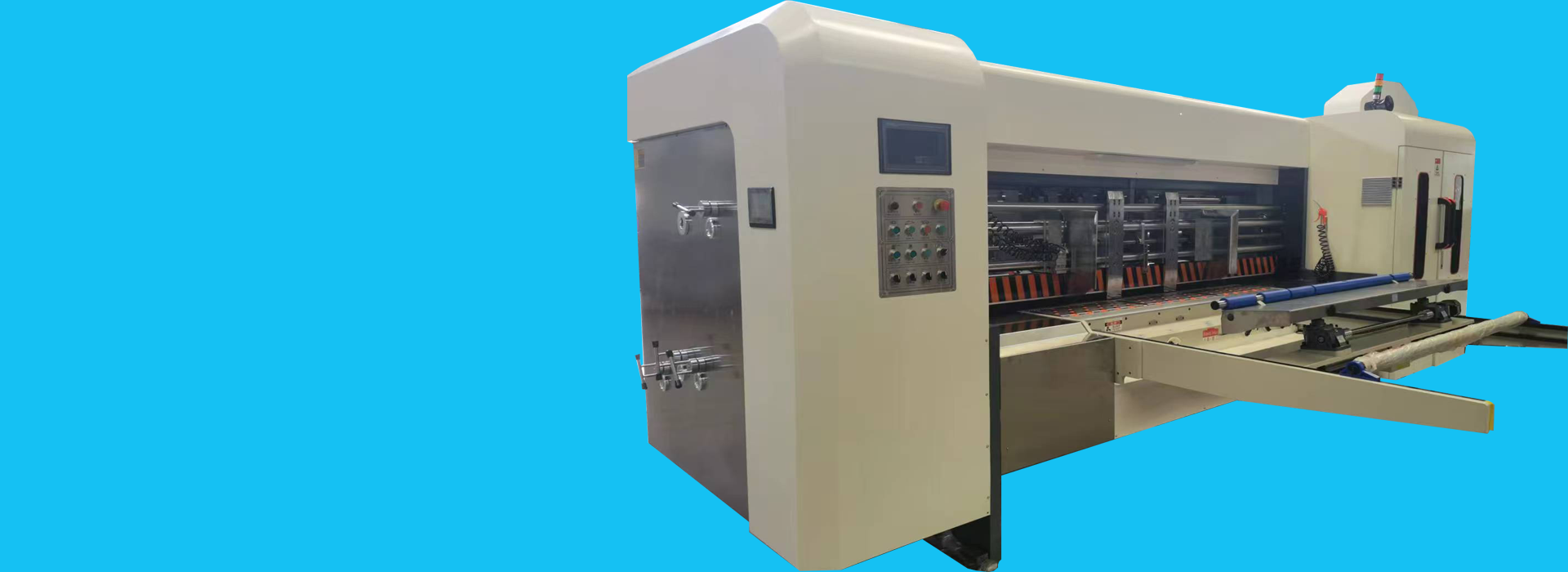

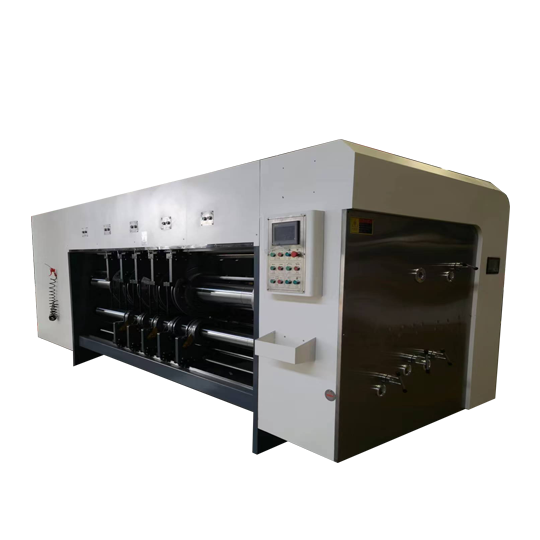

Intelligent one key single forming machine
- The slotting equipment operation is controlled by a touch screen through PLC programming automation system. Based on the order, the “length*width*height” and other data of paper products are input, and the computer system can automatically arrange the orders to the required positions with just one click. According to the customer’s needs, the slotting position can also be manually adjusted slightly.

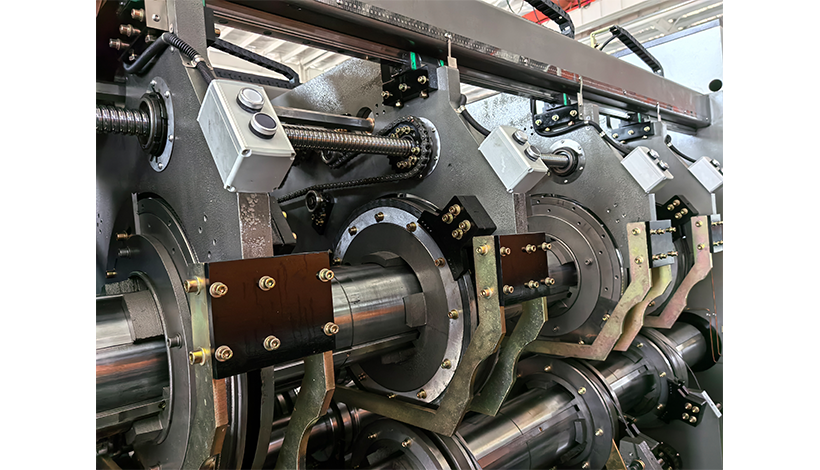

- Using linear guide rail technology, it is smooth and accurate, ensuring the precision of the slotting phase. The ten-thread screw system automatically adjusts, and the pre-pressing wheel, pressing wheel, and slotting tool holder in the slotting part move synchronously left and right through electric adjustment. The control is achieved through buttons and touch screens.

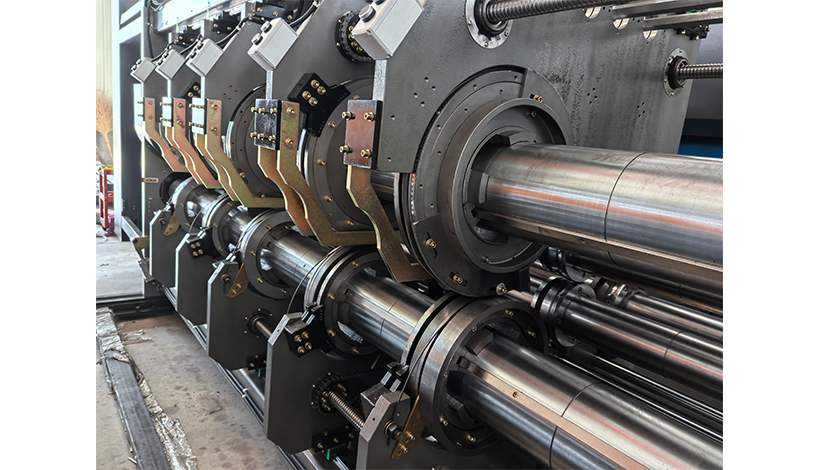

- The standard thickness of the slotting tool is 7mm. It is made of alloy steel and undergoes heat treatment and grinding to create toothed slotting tools. It has excellent hardness and toughness. It is a double-piece trimming tool with sharp cutting edges and high precision. The shaft is made of high-quality 45# seamless steel pipe, which is ground and electroplated on the surface, ensuring smooth movement. The middle tool with large displacement mechanism and trimming cutting device has strong production adaptability. The snap-fitting double-edge trimming tool has smooth trimming and cutting, and saves costs.
Details presentation
MaoWei Carton Packing Company
Hebei Maowei Packing Machinery CO.,Ltd is located in the south of the capital Beijing, the north of Jinan, water and land transportation is very convenient, is a considerable scale of the production of Carton Box Machine Manufacturer professional enterprises. Company covers an area of 3000㎡, has 100 employees. We have independent development and research capabilities, professional and rich manufacturing experience, and constantly improve the shortcomings of international and domestic packaging machinery.
- Technical Specifications
| Model | Max.paper feed size | Slot width*max.slot depth | Speed | Min.feed size | Roll diameter |
| 2000 | 1900*900mm | 7*220mm | 80 | 300*600 | 300 |
| 2200 | 2100*900mm | 7*220mm | 80 | 300*600 | 300 |
| 2400 | 2300*1250mm | 7*300mm | 60 | 350*600 | 405 |
| 2600 | 2500*1250mm | 7*300mm | 60 | 350*600 | 405 |
| 2600 | 2500*1470mm | 7*350mm | 60 | 400*600 | 480 |
| 2800 | 2700*1470mm | 7*350mm | 60 | 400*600 | 480 |
| 2800 | 2700*1600mm | 7*400mm | 60 | 400*600 | 530 |
| 3000 | 2900*1600mm | 7*400mm | 60 | 400*600 | 530 |
| 3000 | 2900*1800mm | 7*450mm | 50 | 450*600 | 600 |
| 3300 | 3200*1800mm | 7*450mm | 50 | 450*600 | 600 |
Customer Review
The customer Adel from Iraq purchased a fully automatic printing machine and a fully automatic box gluing machine from my company and was satisfied.
AdelCompany ownerA customer from Ethiopia purchased corrugated cardboard production lines and a complete set of carton machinery and equipment from our company.
Mr. GashawCompany ownerA customer from Thailand has been purchasing a fully automatic printing and gluing box machine production line from our company since 2019, and the cooperation has continued until now.
TeerawatPurchasing Manager
We are manufacturer.
Sure,we have permanentfreight forwarder who can gain the best prce from mostship companyand offer professional service.
Our machines have 12 month warranty.And the engineers avaiable for overseasservice.
Yes, we accept customized services for customers and we have agents in other countries.
After receiving the deposit, 30~60days, different machines have different times.
30%TT in advance, 70% balance payment before shipping.
My company is located in the Industrial zone of Dongguang County, Cangzhou City, Hebei Province.
